Overview

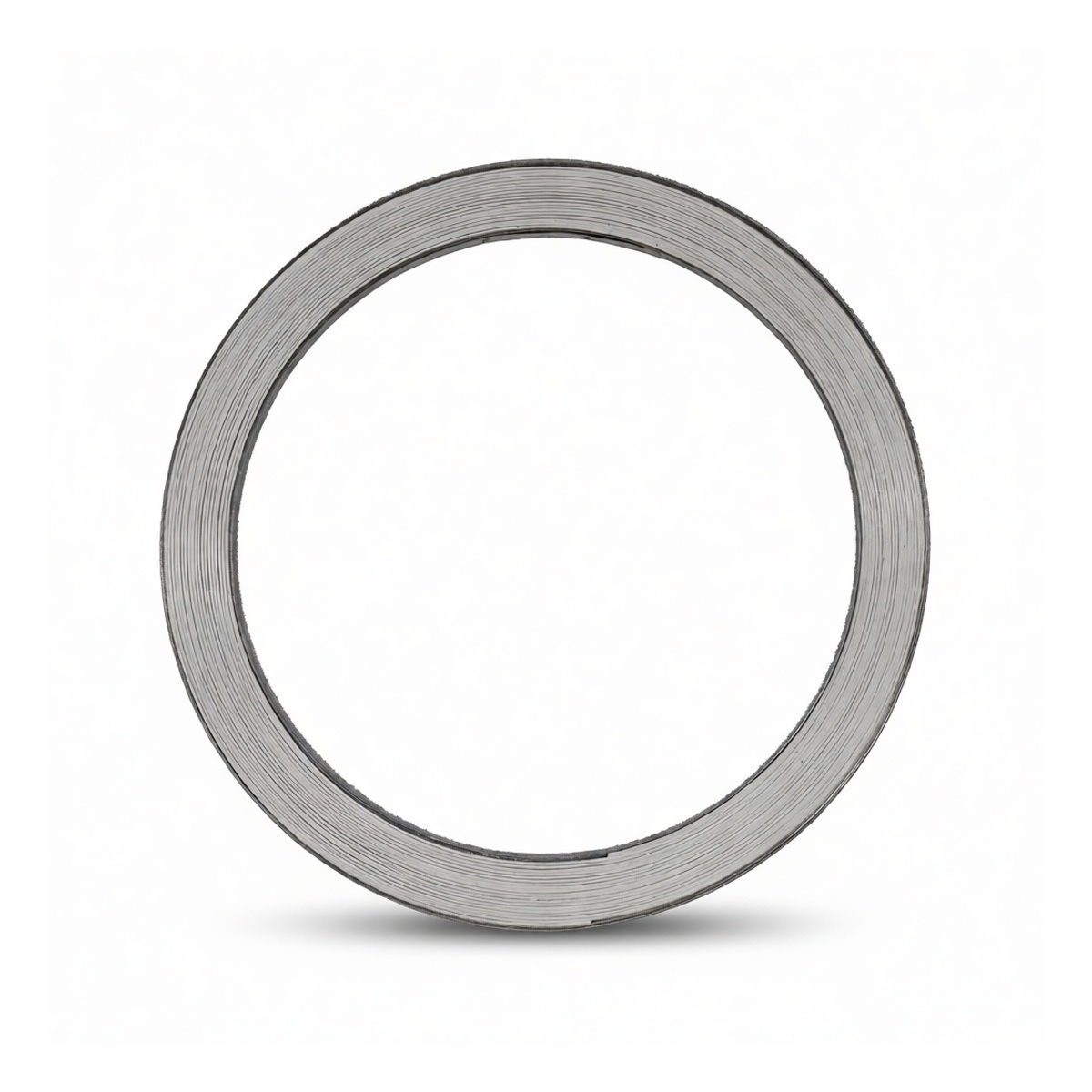

The Type A Metal Wound Gasket is a precision-engineered sealing solution designed for high-pressure and high-temperature flanged connections in industrial piping systems. Its robust construction ensures a reliable, leak-tight seal in demanding service environments, from chemical processing to power generation. This gasket is manufactured to conform with established industry dimensional standards, providing a direct replacement for original equipment and maintenance needs.
Key Features
V-ring design with a centered metal winding for optimal sealing performance. 304 stainless steel winding provides excellent structural strength and corrosion resistance. Polytetrafluoroethylene (PTFE) filler offers superior chemical inertness against a wide range of media. Built to withstand extreme pressure and thermal cycling without compromising seal integrity. Suitable for use on both raised face and flat face flanges when selected appropriately.
Specifications
Gasket Type: Type A Basic Style (V-ring) Nominal Pipe Size: 2 inches (DN50) Pressure Class: 370 PSI (PN25) Outside Diameter: 4.2 inches Inside Diameter: 2.4 inches Thickness: 0.13 inches Metal Windings: 304 Stainless Steel Filler Material: Polytetrafluoroethylene (PTFE) Standards: Meets Industry Standards Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 25
Applications
Sealing flanges in chemical and petrochemical processing pipelines. High-pressure steam lines and utility systems in power plants. Heat exchangers, pumps, valves, and compressor connections. General industrial service for oil, gas, and water where chemical resistance is required.
