Overview

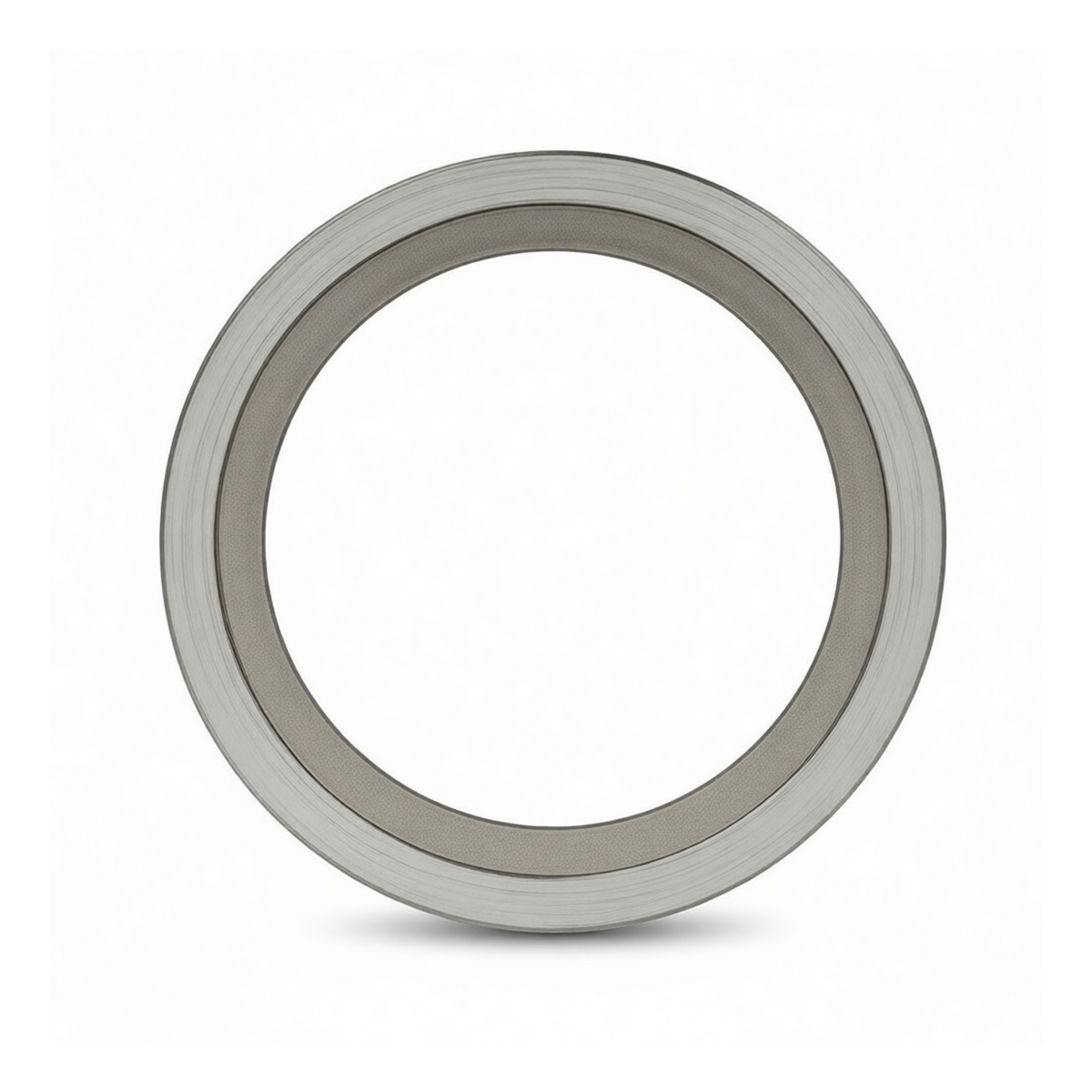

This Type B spiral wound gasket is engineered for high-pressure, high-integrity sealing in critical industrial piping and flange connections. It is manufactured in strict compliance with the SH/T3407-2013 standard, ensuring dimensional accuracy and performance reliability for a nominal pipe size of 60 inches and a pressure class of 900 pounds. The gasket features a robust construction with a 304 stainless steel winding and a polytetrafluoroethylene (PTFE) filler, all centered and reinforced by an inner retaining ring of 304 stainless steel. This design creates a resilient, leak-tight seal capable of withstanding significant mechanical stress and thermal cycling, making it a trusted component for demanding process applications.
Key Features
Construction with a spirally wound 304 stainless steel metal windings
PTFE filler material for excellent chemical resistance and low friction Integrated 304 stainless steel inner ring for structural stability and prevention of gasket blow-out Manufactured to the SH/T3407-2013 industry standard Suitable for high-pressure applications rated to 900 pounds
Provides a reliable seal across a wide range of temperatures and pressures
Specifications
Standard: SH/T3407-2013 Gasket Type: Type B (with Inner Ring) Nominal Pipe Size: 60 inches Pressure Class: 900LB Construction: 304 Stainless Steel / PTFE / 304 Stainless Steel Chemical Base: PTFE Sealant Type: Spiral Wound Gasket Indoor/Outdoor Use: Suitable for Both Paintable: No Package Quantity: 2 Gaskets
Applications
This gasket is designed for sealing flanges in chemical and petrochemical processing Ideal for use in power generation and oil & gas transmission systems
Suitable for applications involving a wide spectrum of corrosive chemicals due to PTFE inertness Commonly used in heat exchangers, pressure vessels, and large-diameter pipeline connections Effective in services requiring a seal for thermal expansion and vibration
