Overview

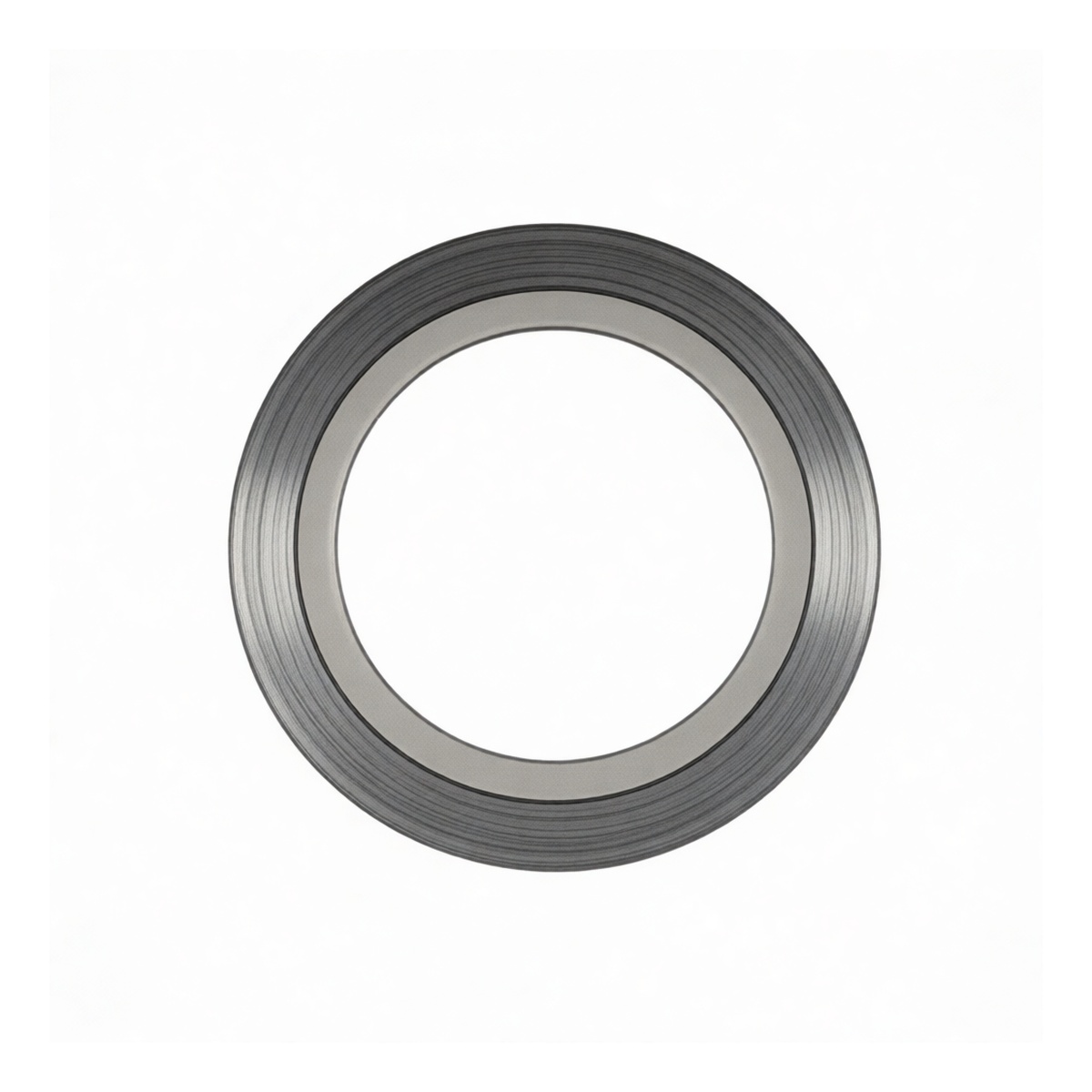

This Type B metal winding gasket is a high-performance sealing solution engineered for critical flange connections in demanding industrial environments. It is specifically constructed to create a reliable, leak-tight seal in high-pressure and high-temperature piping systems. The design incorporates an integral inner ring for enhanced stability and resistance to pressure-induced blow-out, making it a robust choice for maintenance and new installations where system integrity is paramount.
Key Features
Engineered for high-pressure service up to 600 PSI Withstands continuous operating temperatures up to 1,500°F
Features an integral inner ring for structural stability and gasket retention
Resilient graphite filler provides excellent conformability and seal Corrosion-resistant 304 stainless steel inner and outer windings
Suitable for both indoor and outdoor applications
Specifications
Gasket Type: Type B with Inner Ring Nominal Pipe Size: 20 inches Pressure Class: 600 PSI Temperature Rating: 1,500°F Winding Material: 304 Stainless Steel Filler Material: Flexible Graphite Inner Ring Material: 304 Stainless Steel Applicable Standard: HG Paintable: No Package Quantity: 8
Applications
Sealing flanges in chemical and petrochemical processing systems High-pressure steam lines and power generation utilities
Refinery and hydrocarbon processing piping
Industrial boilers and heat exchangers General industrial piping for aggressive media
