Overview

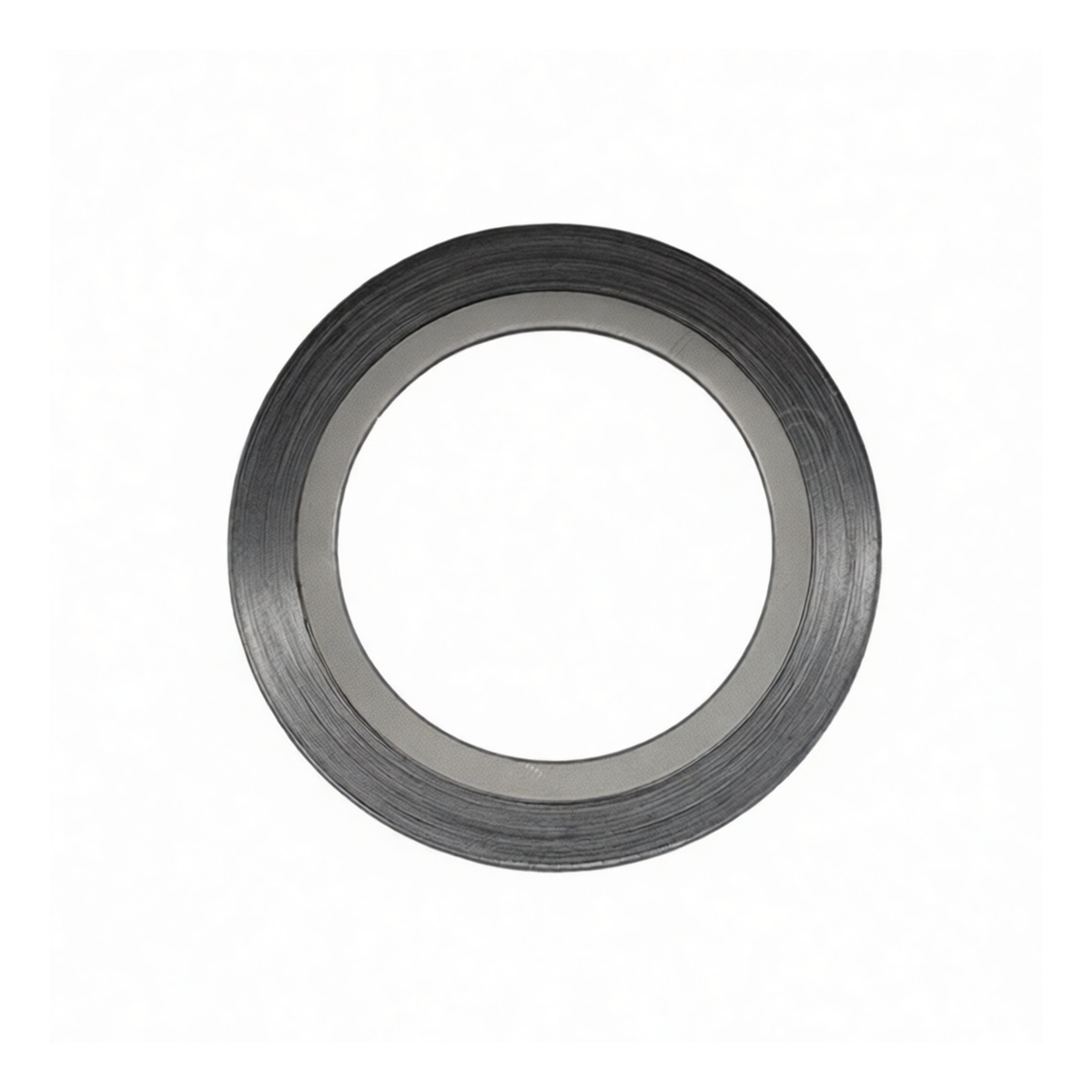

This Type B metal wound gasket is engineered for critical sealing applications in high-pressure industrial piping systems. It is specifically designed to create a secure, leak-proof seal between flanged connections, preventing the escape of fluids or gases under demanding service conditions. The gasket's robust construction combines the strength of metal with the conformability of a resilient filler, making it a reliable component for maintenance, repair, and new installations in process industries.
Key Features
Engineered for high-pressure service up to 300 PSI Durable wound construction with 304 stainless steel windings
Resilient graphite filler for superior conformability and seal Integral inner ring provides enhanced stability and blow-out resistance
Suitable for a broad range of temperatures and media
Conforms to established HG industry standards for material and design
Specifications
Gasket Type: Type B with Inner Ring Nominal Pipe Size: 4 Inch Pressure Rating: 300 LB (300 PSI) Metal Material: 304 Stainless Steel Filler Material: Graphite Inner Ring Material: 304 Stainless Steel Standards: HG Chemical Base: Graphite Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 50
Applications
This gasket is ideal for sealing flanged joints in a wide array of industrial piping systems. Its material compatibility and pressure rating make it suitable for chemical processing plants, petrochemical refineries, and power generation facilities. Common applications include pumps, valves, heat exchangers, and vessel connections handling steam, hydrocarbons, and various chemical process fluids. It is a standard component for maintenance operations requiring dependable, long-lasting sealing performance.
