Overview

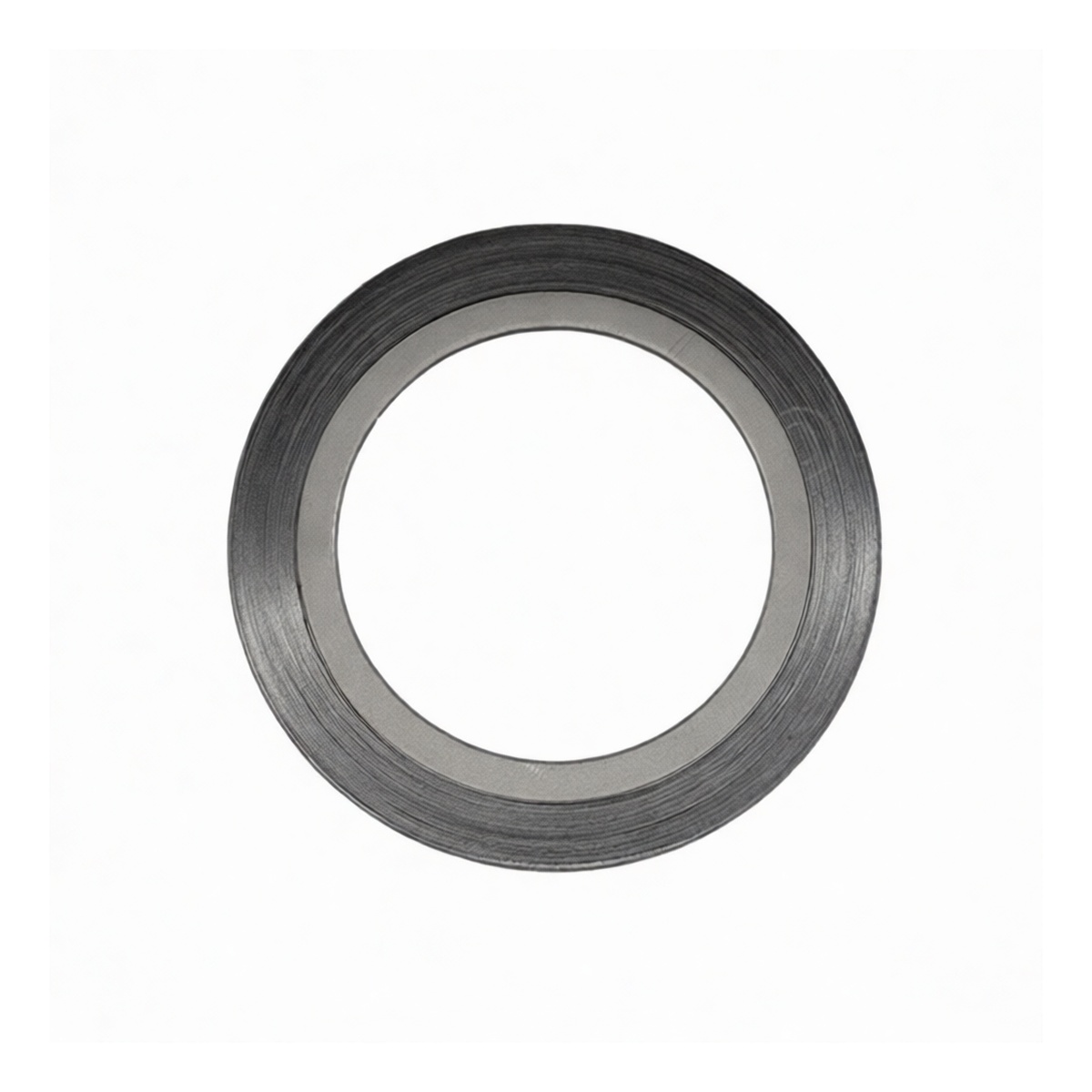

This Type B metal wound gasket is engineered for reliable, high-integrity sealing in demanding industrial piping systems. It is specifically constructed for use on 1-inch nominal pipe size (DN25) class 600 flanges, capable of containing pressures up to 600 PSI. The gasket's robust design combines the strength of metal with the conformability of a soft filler, creating a leak-tight seal that accommodates minor flange irregularities and thermal cycling. It is manufactured in compliance with the HG/T 20631-2009 standard, ensuring consistent quality and dimensional accuracy for interchangeability in regulated applications.
Key Features
Engineered with a winding of 316L stainless steel for excellent corrosion resistance
Flexible graphite filler provides superior sealing and thermal conductivity Integral internal reinforcing ring for added stability and to prevent gasket blow-out Withstands continuous operating temperatures up to 1,500°F
Suitable for sealing on raised face and flat face flanges Designed for high-pressure steam, chemical, petrochemical, and power generation service
Specifications
Standard: HG/T 20631-2009 Type: B (With Inner Ring) Nominal Pipe Size: 1 inch Pressure Class: 600 LB Construction: 316L Stainless Steel / Graphite / 316L Stainless Steel Chemical Base: Graphite Sealant Type: Wound Gasket Indoor/Outdoor Use: Both Paintable: No Package Quantity: 50
Applications
Sealing high-pressure steam lines and boiler feed systems
Flange connections in chemical and petrochemical processing
Refinery piping and hydrocarbon service
Power generation and thermal plant infrastructure General industrial piping for aggressive media where a resilient seal is required
