Overview

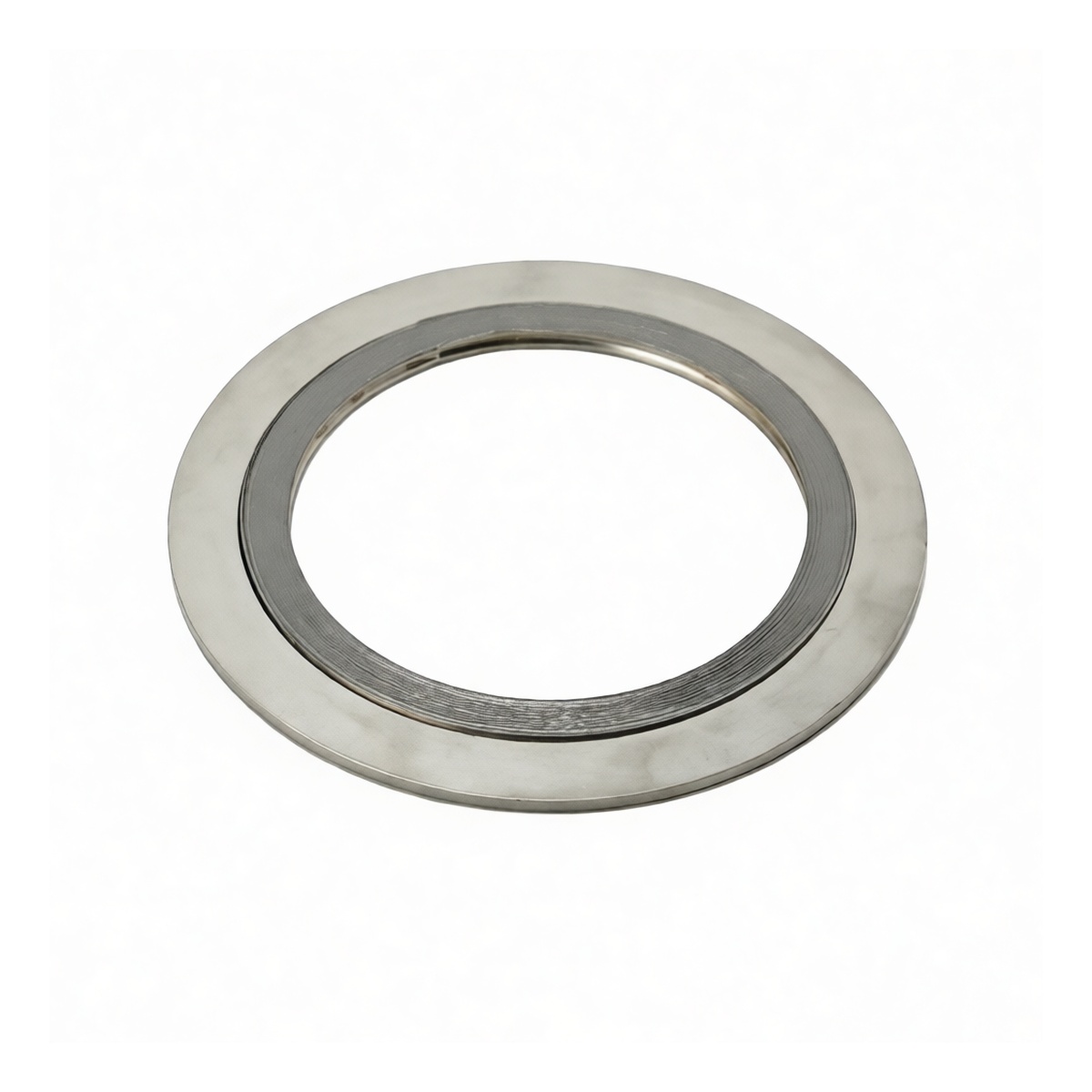

This Type C spiral wound gasket is a precision sealing component engineered for reliable performance in high-pressure piping systems. It is specifically constructed to create a robust, leak-tight seal between flanges in demanding industrial environments. The design incorporates a metal outer ring for controlled compression and proper alignment during installation, ensuring optimal sealing integrity and preventing gasket blow-out. It is manufactured to recognized industry standards for consistent quality and dimensional accuracy.
Key Features
Type C design with a centering outer ring for easy alignment and compression control
Spiral wound construction with alternating layers of metal and filler for superior resilience
Resilient graphite filler provides effective sealing across a wide temperature range 304 stainless steel windings and outer ring offer excellent corrosion resistance
Suitable for both indoor and outdoor applications in various service conditions
Specifications
Standards: HG Chemical Base: Graphite Sealant Type: Gasket Indoor/Outdoor Use: Both Paintable: No Nominal Pipe Size: DN15 (1/2 inch) Pressure Rating: PN16 (approximately 232 PSI) Inner Diameter: 1.1 inches Outer Diameter: 1.5 inches Thickness: 0.18 inches (4.5mm) Winding Material: 304 Stainless Steel Filler Material: Flexible Graphite Outer Ring Material: 304 Stainless Steel Package Quantity: 36 pieces
Applications
Sealing flanges in chemical and petrochemical processing pipelines High-pressure steam and utility lines
Refinery and power generation plant piping systems
Industrial heating and cooling systems General service applications requiring a robust, spiral wound gasket solution
