Overview

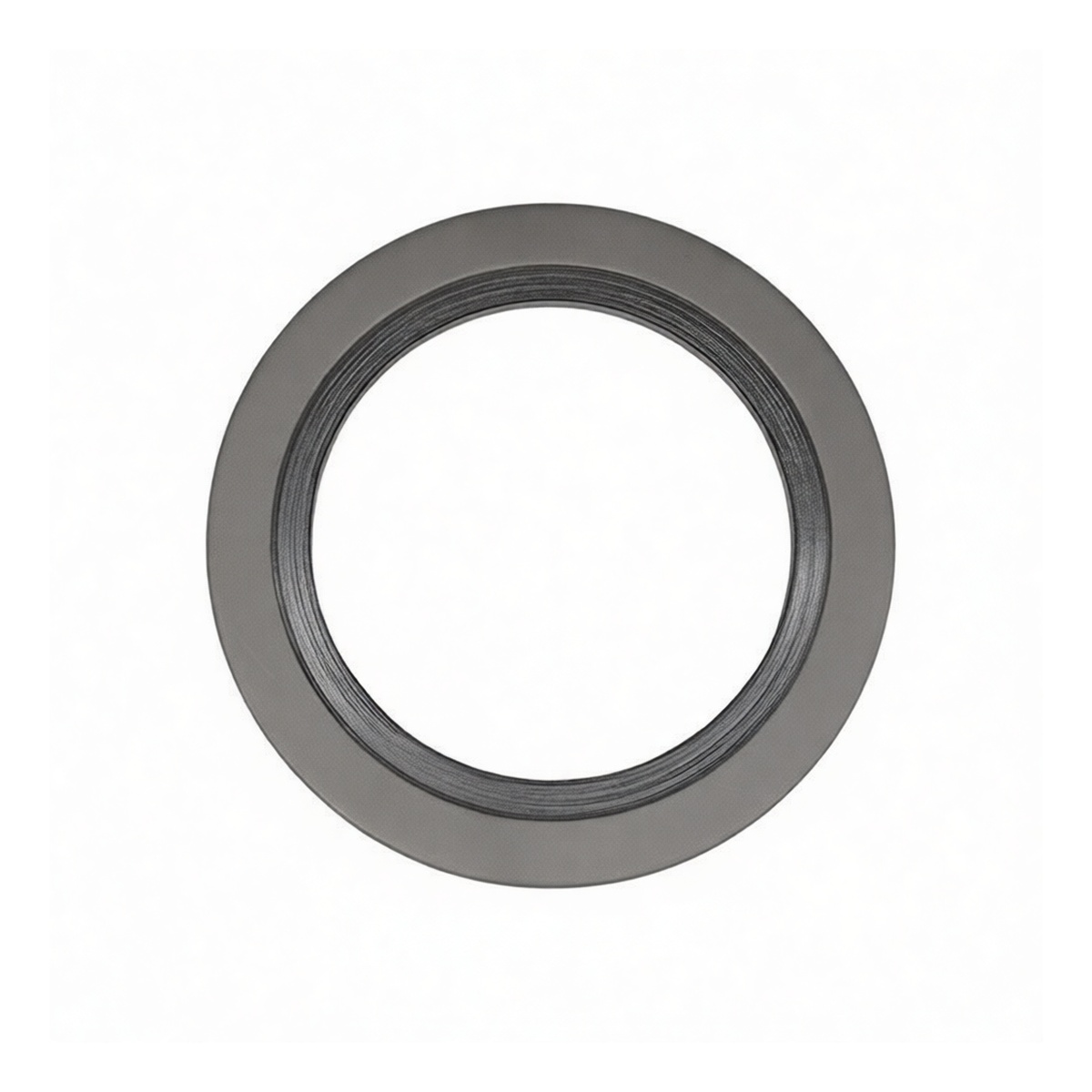

This Type C spiral wound gasket is engineered for critical sealing applications in high-pressure industrial piping systems. Designed for 4-inch flanges rated to 360 PSI, it provides a robust and reliable seal capable of withstanding thermal cycling, pressure fluctuations, and exposure to corrosive media. The gasket's construction, featuring a 316L stainless steel winding and a graphite filler, ensures long-term performance and leak prevention in demanding environments. It is manufactured to stringent industry standards and includes an outer containment ring for enhanced stability during installation.
Key Features
Engineered for high-pressure service up to 360 PSI Constructed with corrosion-resistant 316L stainless steel windings
Graphite filler provides excellent thermal conductivity and resilience
Outer containment ring ensures proper alignment and gasket compression
Suitable for use with a wide range of industrial fluids and gases
Manufactured to HG industry standards for quality assurance
Designed for reliable performance across thermal cycles
Specifications
Standards: HG Chemical Base: Graphite Sealant Type: Spiral Wound Gasket Indoor/Outdoor Use: Both Paintable: No Nominal Size: 4 Inch Pressure Class: 360 PSI Winding Material: 316L Stainless Steel Filler Material: Flexible Graphite Gasket Type: Type C with Outer Ring Package Quantity: 10
Applications
Sealing high-pressure flanges in chemical and petrochemical processing
Power generation and steam system piping
Oil and gas pipeline connections and valves
Industrial HVAC and refrigeration systems General industrial plant maintenance and fluid handling systems
