Industrial · SKU: AE5590749

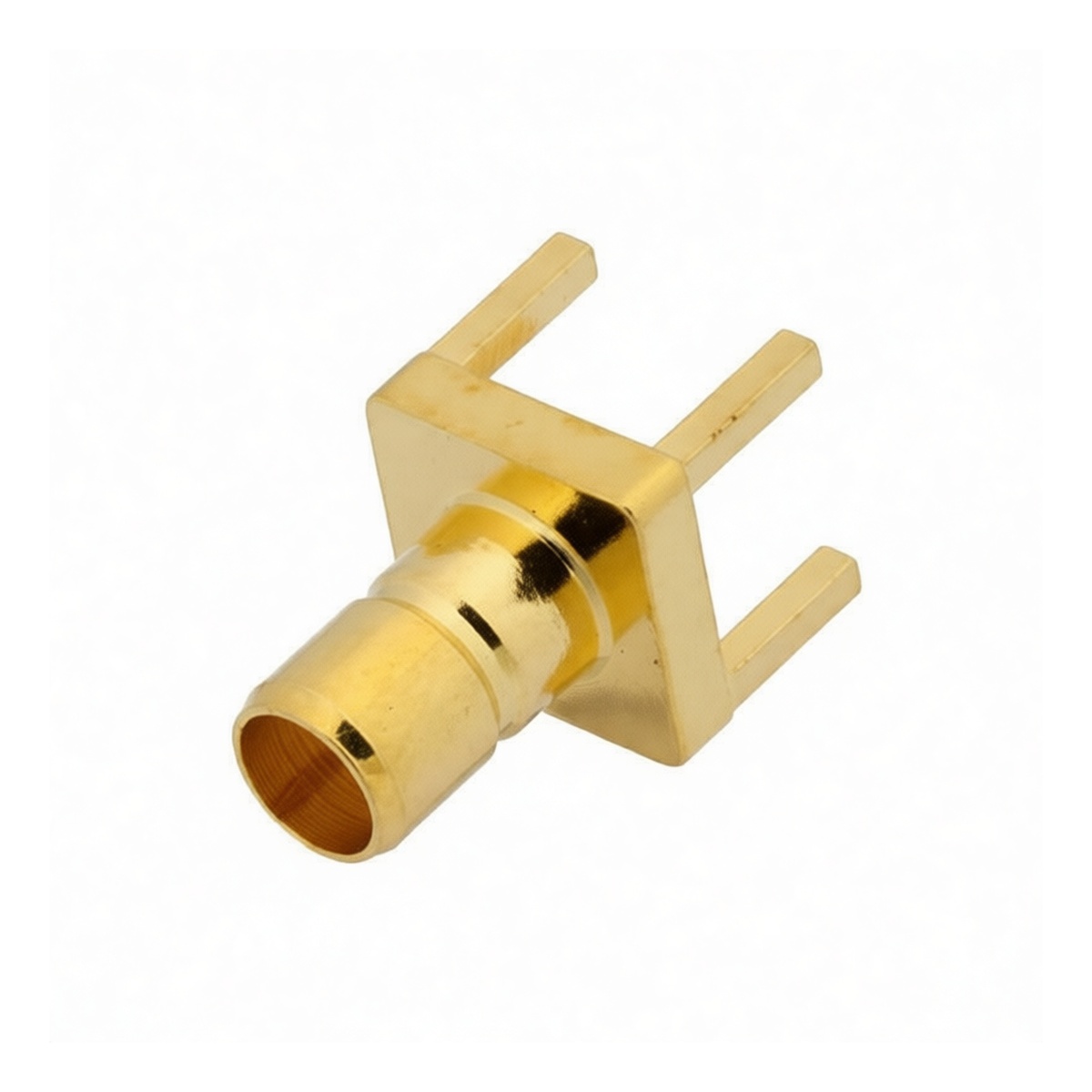

75 Ohm Mini SMB Jack PCB Connector, 0.2" Hole Spacing, PVC
This 75 Ohm Mini SMB jack connector provides a reliable through-hole PCB mounting solution for coaxial signal transmission. Engineered with a straight solder attachment design, it features precise 0.2-inch hole spacing and 0.055-inch drill holes to ensure accurate board integration. The unit supports a voltage rating of 50V and a current capacity of 1A, making it suitable for low-power RF applications. Constructed with durable PVC insulation, this component delivers consistent electrical performance in compact electronic assemblies requiring standardized 75 Ohm impedance matching.
Volume Pricing - Buy More, Save More
| Quantity | Discount | Unit Price |
|---|---|---|
| 1 - 10 | - | $79.99 |
| 11 - 50 | -5% | $75.99 |
| 51+ | -10% | $71.99 |
Free Shipping $200+
On qualifying orders
Fast DDP Delivery
Door-to-door service
24/7 Support
Expert assistance
Technical Specifications
| Voltage Rating | 50V |
| Current Rating | 1A |
| Material | PVC |
| Cable Type | Coaxial |
| Cable Length | Not specified |
| Connector Type | SMB |
