Industrial · SKU: AE5590713

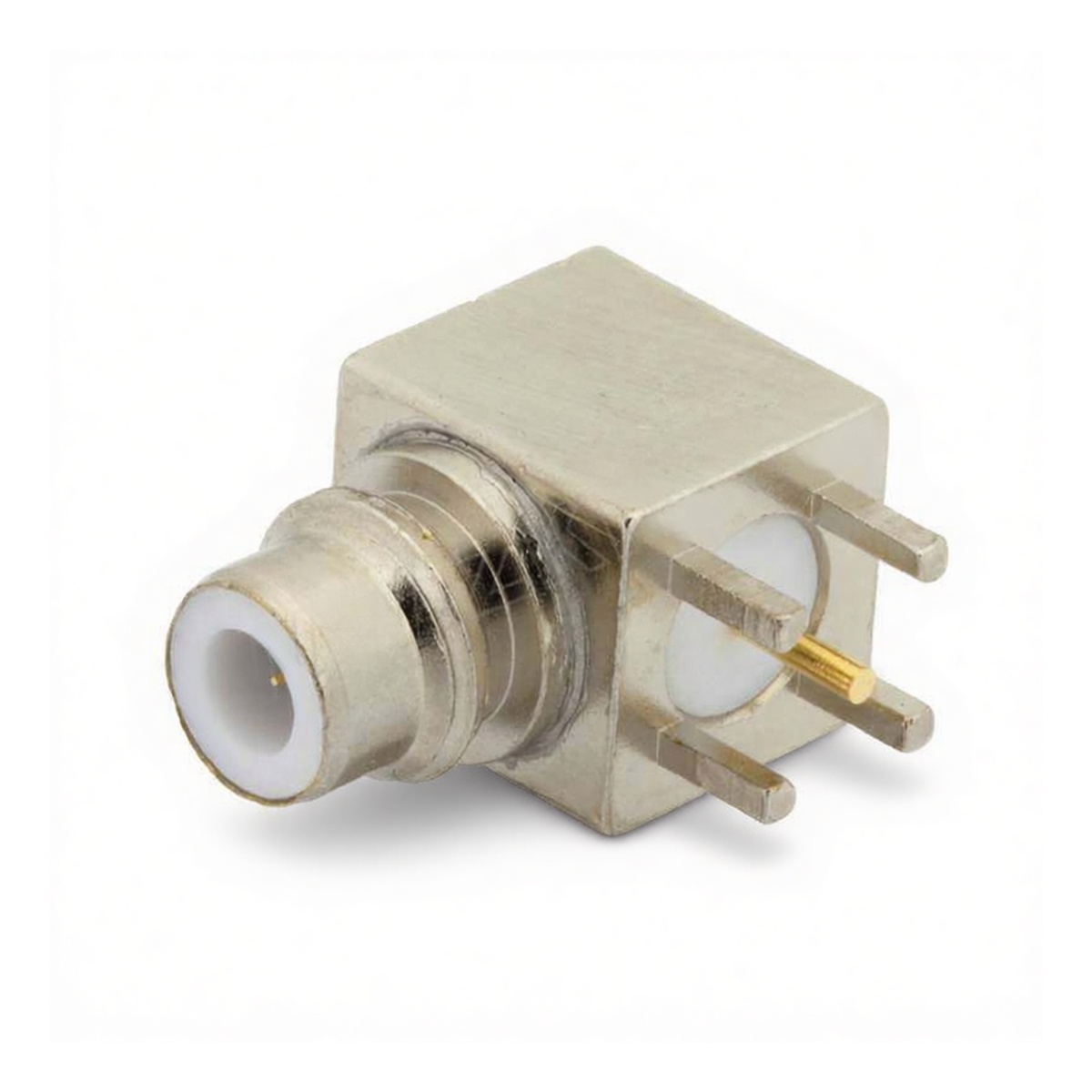

75 Ohm SMC Right Angle Jack Brass PCB Mount Connector 300V 2A
This 75 Ohm right-angle SMC jack connector is engineered for reliable through-hole PCB mounting in high-frequency applications. Constructed from durable brass, the unit supports a voltage rating of 300V and a current capacity of 2A, ensuring stable signal transmission for coaxial systems. The design features precise mounting dimensions with a 0.2-inch hole spacing and 0.067-inch drill diameter to facilitate seamless board integration. Ideal for demanding environments, this solder-attach component delivers consistent impedance matching and mechanical stability without requiring additional cabling.
Volume Pricing - Buy More, Save More
| Quantity | Discount | Unit Price |
|---|---|---|
| 1 - 10 | - | $139.99 |
| 11 - 50 | -5% | $132.99 |
| 51+ | -10% | $125.99 |
Free Shipping $200+
On qualifying orders
Fast DDP Delivery
Door-to-door service
24/7 Support
Expert assistance
Technical Specifications
| Voltage Rating | 300V |
| Current Rating | 2A |
| Material | Brass |
| Cable Type | Coaxial |
| Cable Length | N/A |
| Connector Type | 75Ω BNC |
