Overview

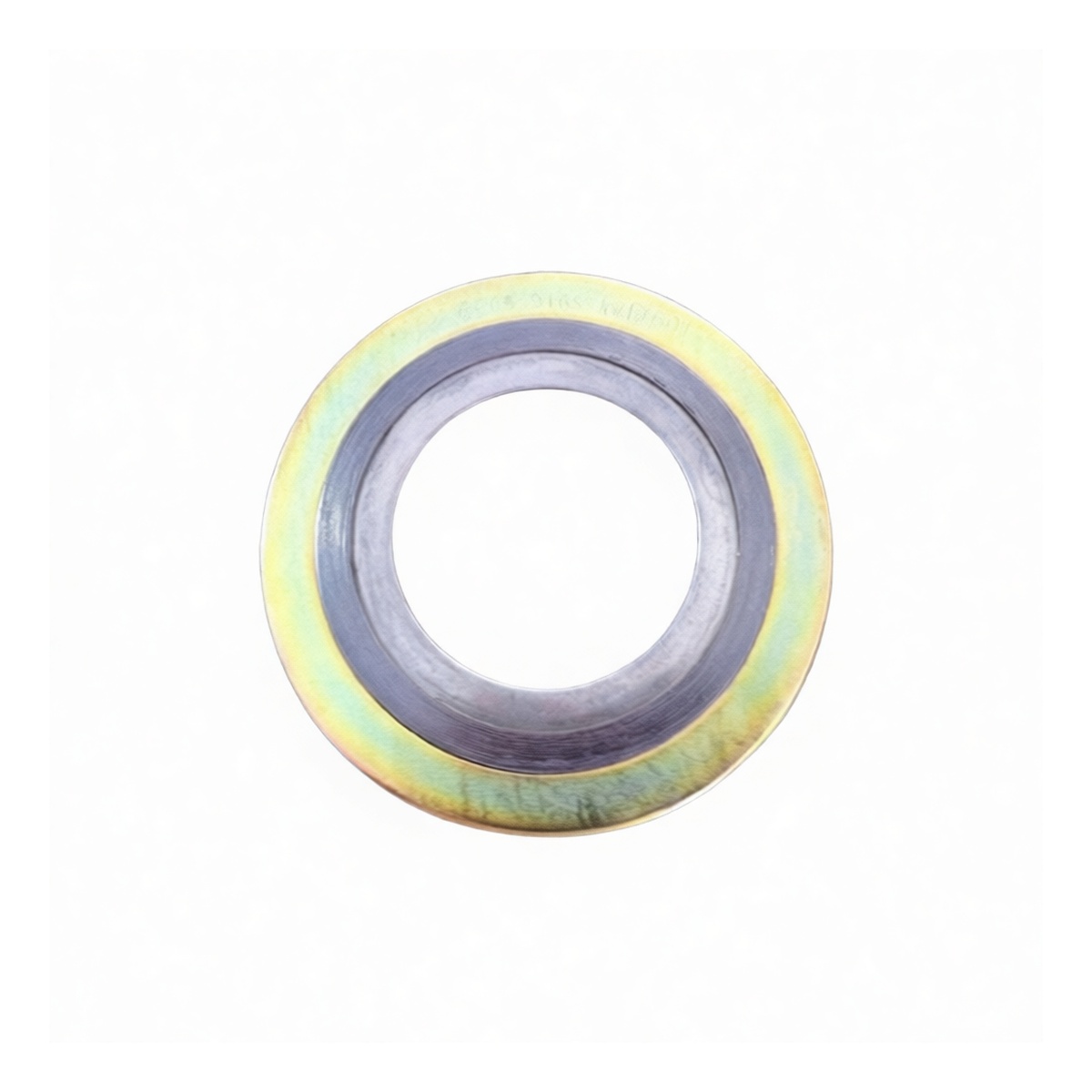

This D-type spiral wound gasket is a precision sealing component engineered for high-pressure, high-temperature flange connections in industrial piping systems. Designed to meet rigorous industry standards, it provides a robust and reliable metal-to-metal seal that maintains integrity under cyclic loading and extreme service conditions. The gasket's construction incorporates both inner and outer containment rings, a critical feature for controlling compression and preventing sealant extrusion, thereby ensuring long-term leak prevention and system safety.
Key Features
Spiral wound construction with alternating layers of metal and filler
Inner and outer carbon steel containment rings for compression control
Flexible graphite filler for superior thermal and chemical resistance 304 stainless steel winding for corrosion resistance Engineered for sealing in high-pressure flange faces Prevents gasket blow-out and minimizes creep relaxation
Suitable for a wide range of industrial media and temperatures
Specifications
Material: Carbon Steel (CRS) Rings, 304 Stainless Steel Windings, Flexible Graphite Filler Nominal Size: 1.34 inches by 2.05 inches Pressure Rating: Suitable for PN 25/Class 150 flange connections Design Standard: Manufactured to common industry specifications for spiral wound gaskets Construction: D-type with inner and outer rings Package Quantity: 100 units
Applications
Sealing pump and valve flanges in chemical processing High-temperature steam lines in power generation
Refinery and petrochemical pipeline connections
Heat exchanger and boiler applications General industrial service for oil, gas, and water systems
