Overview

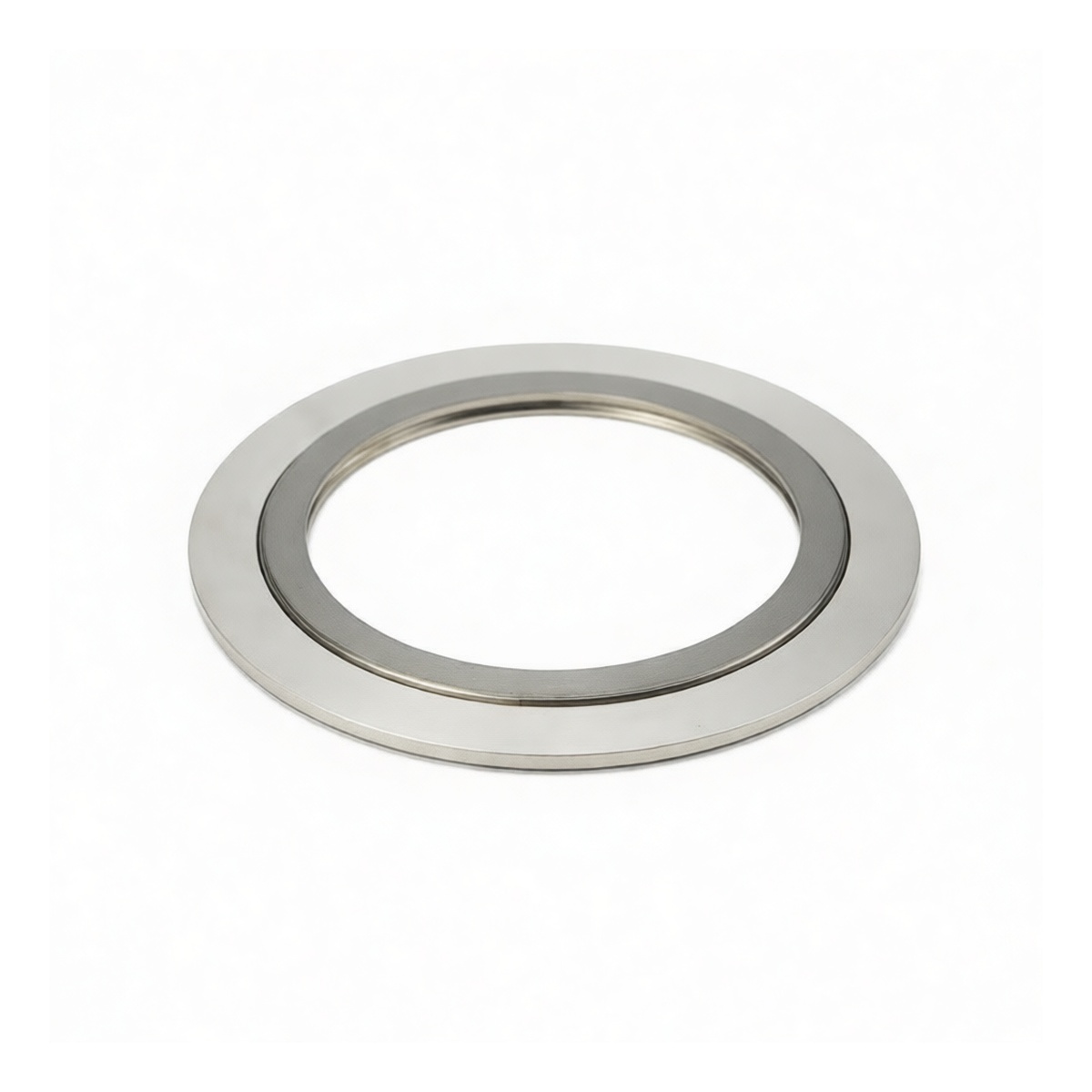

This 1-inch stainless steel 316L spiral wound gasket is a precision sealing component designed for high-integrity flange connections in demanding industrial piping systems. Engineered to withstand severe service conditions, it provides a reliable, leak-free seal in applications involving high pressure, elevated temperatures, and corrosive media. Its robust construction ensures long-term performance and safety, making it a critical part of maintenance and assembly protocols for process engineers and maintenance professionals.
Key Features
Constructed entirely from corrosion-resistant 316L stainless steel for the winding and outer ring Designed for high-pressure service up to PN63, approximately 915 PSI
Features a resilient graphite filler for excellent thermal conductivity and sealing performance C-shaped metal winding provides superior spring-back and compensates for flange irregularities
Includes a sturdy outer centering ring for easy installation and alignment
Conforms to recognized industry dimensional and material standards Packaged for convenience and inventory management in a quantity of 20
Specifications
Material: Stainless Steel 316L (metal winding and outer ring) Filler Material: Flexible Graphite Nominal Size: 1 Inch Pressure Rating: PN63 (Approx. 915 PSI) Construction: Spiral Wound with Outer Ring (Style CG) Standards: Manufactured to Meet Industry Standards for Dimensions and Performance Package Quantity: 20 Pieces
Applications
High-pressure process piping in chemical and petrochemical plants
Steam and utility lines in power generation facilities
Oil and gas transmission and refining operations
Industrial heating and cooling systems General industrial plant maintenance where robust flange sealing is required
