Overview

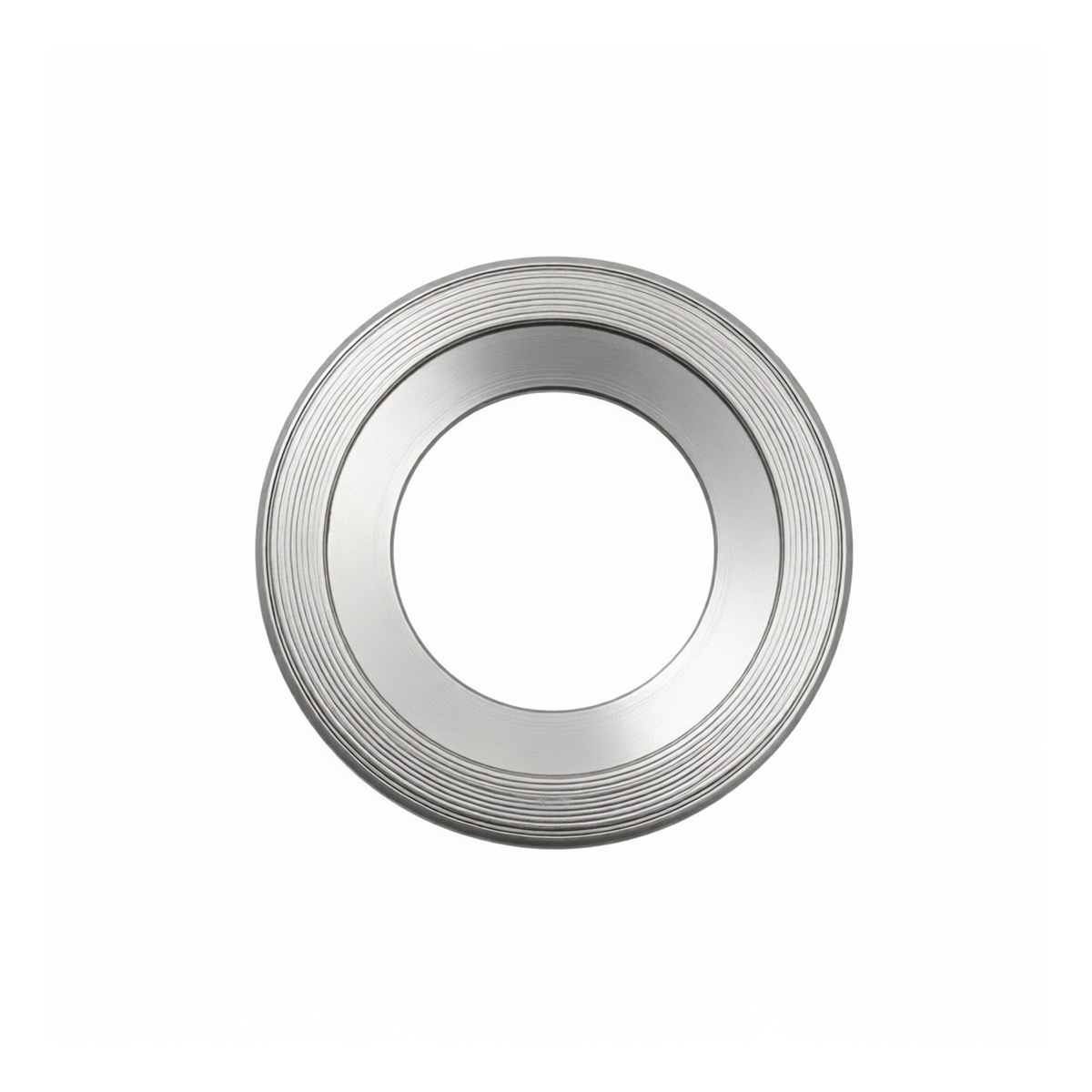

This 3.2-inch spiral wound gasket is engineered for high-integrity sealing in critical flange connections. It is constructed with a corrosion-resistant 316L stainless steel winding and a graphite filler, providing a reliable seal across a broad spectrum of pressures and temperatures. The inclusion of an inner ring (Type B style) centers the gasket during installation and provides enhanced resistance to blow-out under high pressure or vacuum conditions. Designed to meet rigorous industry standards, this gasket is a trusted component for maintaining system integrity in demanding industrial piping applications.
Key Features
Manufactured from 316L stainless steel for superior corrosion resistance
Graphite filler ensures excellent thermal conductivity and sealability Inner ring provides installation stability and blow-out protection
Conforms to recognized industry dimensional and material standards Suitable for a wide pressure range from PN16 through PN160 Designed for nominal pipe size (NPS) 3.2 inch flanges
Specifications
Material: 316L Stainless Steel Nominal Size: 3.2 inches Construction: Spiral Wound with Inner Ring (Type B) Filler Material: Flexible Graphite Pressure Ratings: PN16, PN25, PN40, PN63, PN100, PN160 Connection Type: Flange Gasket Standards: Manufactured to Industry Specifications
Applications
Sealing connections in chemical and petrochemical processing pipelines High-pressure steam and utility systems
Oil and gas transmission and refining operations
Power generation and boiler feed systems
General industrial plant maintenance and fluid handling systems
Package Quantity: 24 pieces per box
