Overview

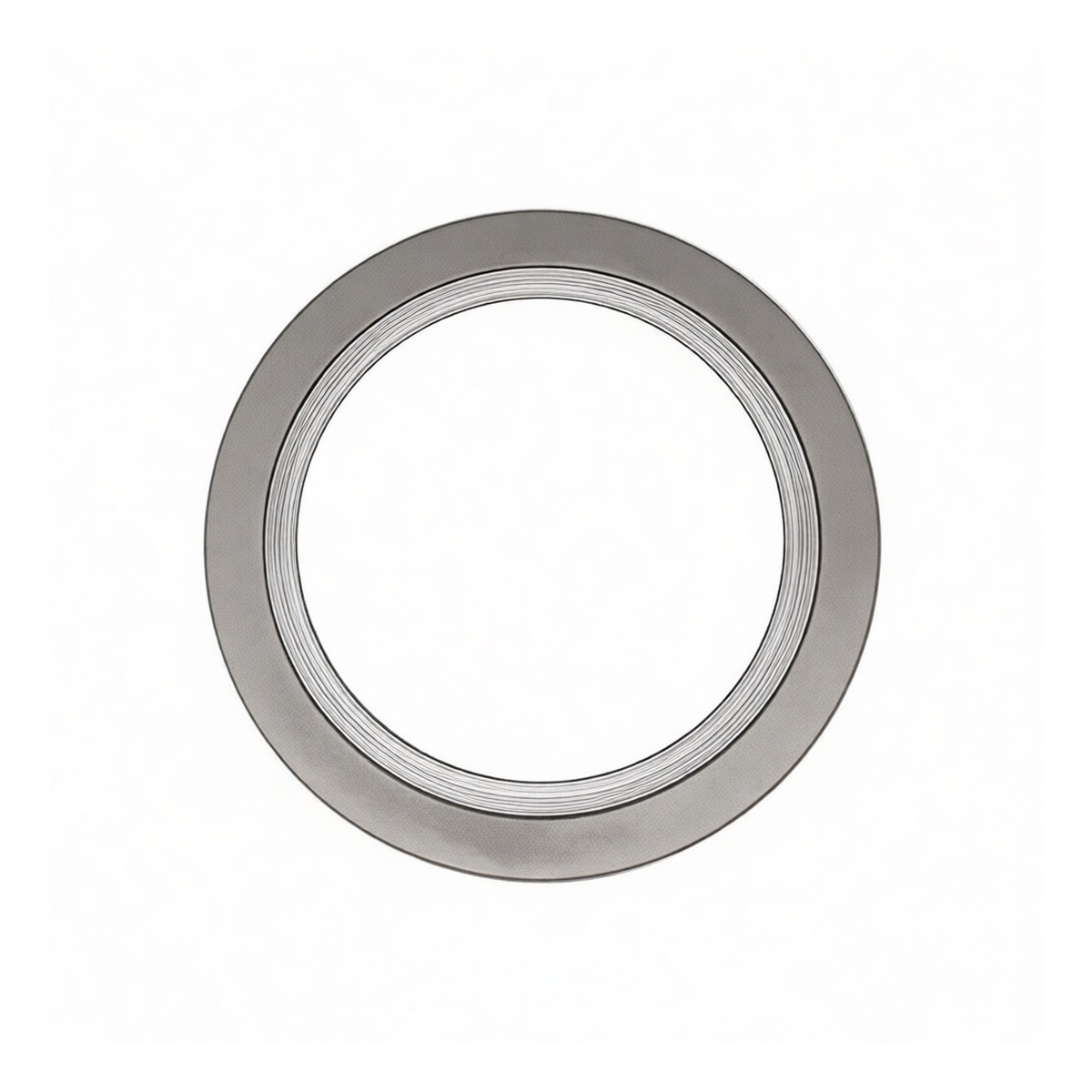

This C-shaped metal wound flange gasket is engineered for critical sealing applications in industrial piping systems. It features a robust construction with a 316L stainless steel inner core and outer centering ring, wound with a high-purity PTFE (polytetrafluoroethylene) filler. This combination delivers superior performance in environments involving corrosive chemicals, high temperatures, and variable pressures, ensuring long-term sealing integrity and preventing fluid leaks in flanged connections.
Key Features
Constructed with corrosion-resistant 316L stainless steel for core and outer ring
PTFE filler provides exceptional chemical inertness and broad media compatibility C-shaped wound design with an outer ring ensures easy alignment and prevents over-compression
Engineered for reliable sealing under thermal cycling and system vibration Meets the dimensional and material requirements of the GB/T4622.2-2003 standard
Specifications
Material: 316L Stainless Steel and PTFE Filler Nominal Pipe Size: 0.59 inches (DN15) Pressure Rating: 16 bar (approximately 232 PSI) Design: C-Shaped with Outer Centering Ring Standards: GB/T4622.2-2003 Connection Type: Flange Gasket Pack Quantity: 100 pieces
Applications
Sealing connections in chemical and petrochemical processing pipelines High-purity fluid handling systems in pharmaceutical and food processing
General industrial plumbing and hydraulic systems with aggressive media Compressed air and gas lines requiring reliable, leak-free seals Maintenance and repair kits for facility management teams
