Overview

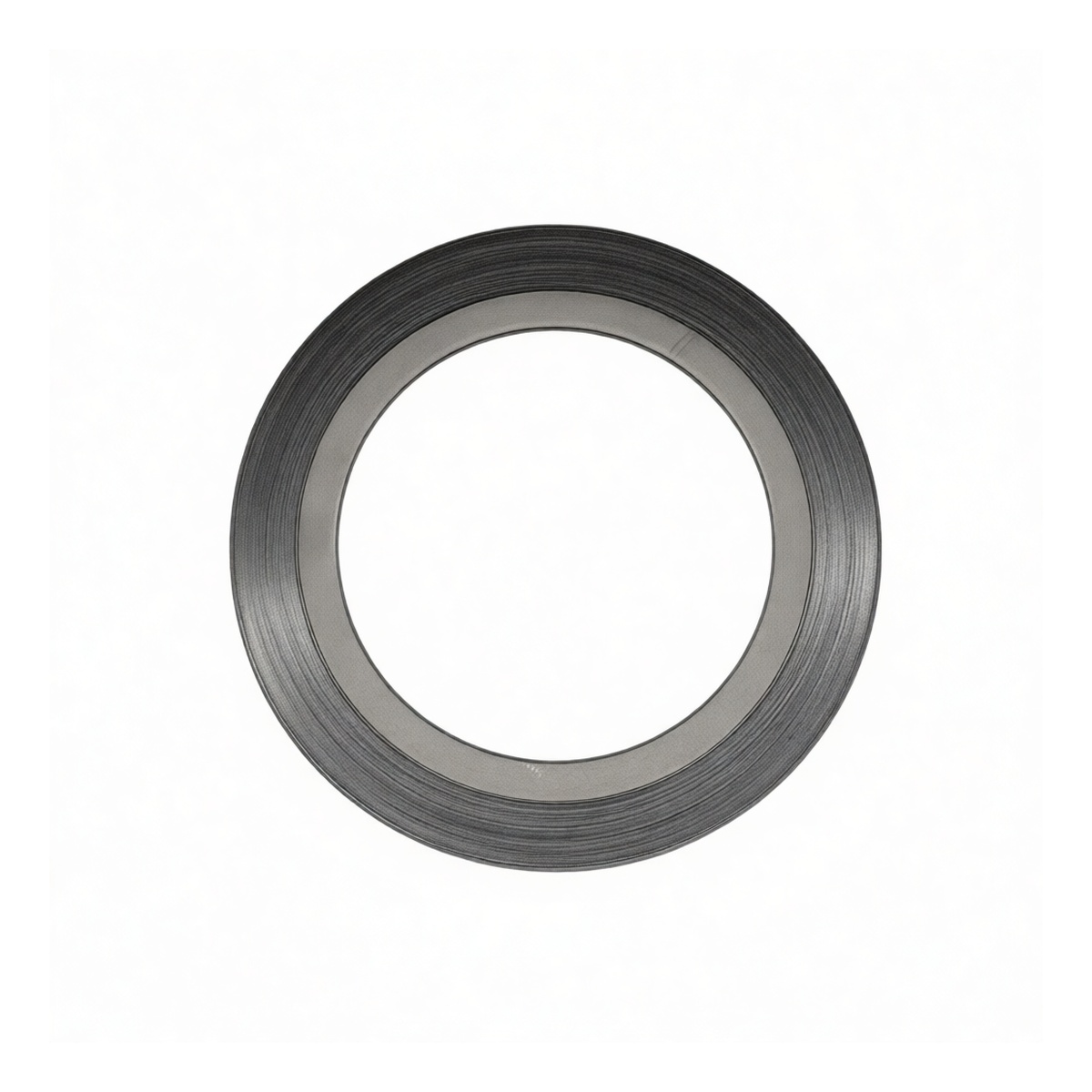

This 316L Stainless Steel Flanged Gasket is engineered for high-integrity sealing in demanding industrial piping systems. Designed to a 5-inch nominal size and a 600 LB pressure class, it is constructed as a metal-wound gasket with an inner reinforcing ring. The core design utilizes a corrosion-resistant 316L stainless steel windings filled with compressible graphite, creating a reliable seal capable of withstanding challenging process conditions including elevated temperatures and pressures. This gasket conforms to recognized industry dimensional standards, ensuring compatibility and performance predictability in critical flanged connections.
Key Features
Constructed from corrosion-resistant 316L stainless steel for longevity in harsh environments Features a flexible graphite filler for an effective, conforming seal under compression Metal-wound design with an integral inner ring provides structural stability and prevents buckling Engineered for high-pressure applications rated to 600 LB
Manufactured to precise industry standards for dimensional reliability and interchangeability Suitable for a wide range of temperatures and media compatible with 316L stainless steel and graphite
Specifications
Material: 316L Stainless Steel with Graphite Filler Nominal Size: 5 inches Pressure Class: 600 LB Design: Metal-Wound with Inner Ring Standards: Conforms to Industry Standard Specifications Connection Type: Flanged Package Quantity: 8 units
Applications
Sealing flanged connections in chemical and petrochemical processing pipelines High-pressure steam and utility systems
Oil and gas production and refining infrastructure Power generation and co-generation plant piping Industrial heating and cooling systems requiring reliable, maintenance-free seals
