Overview

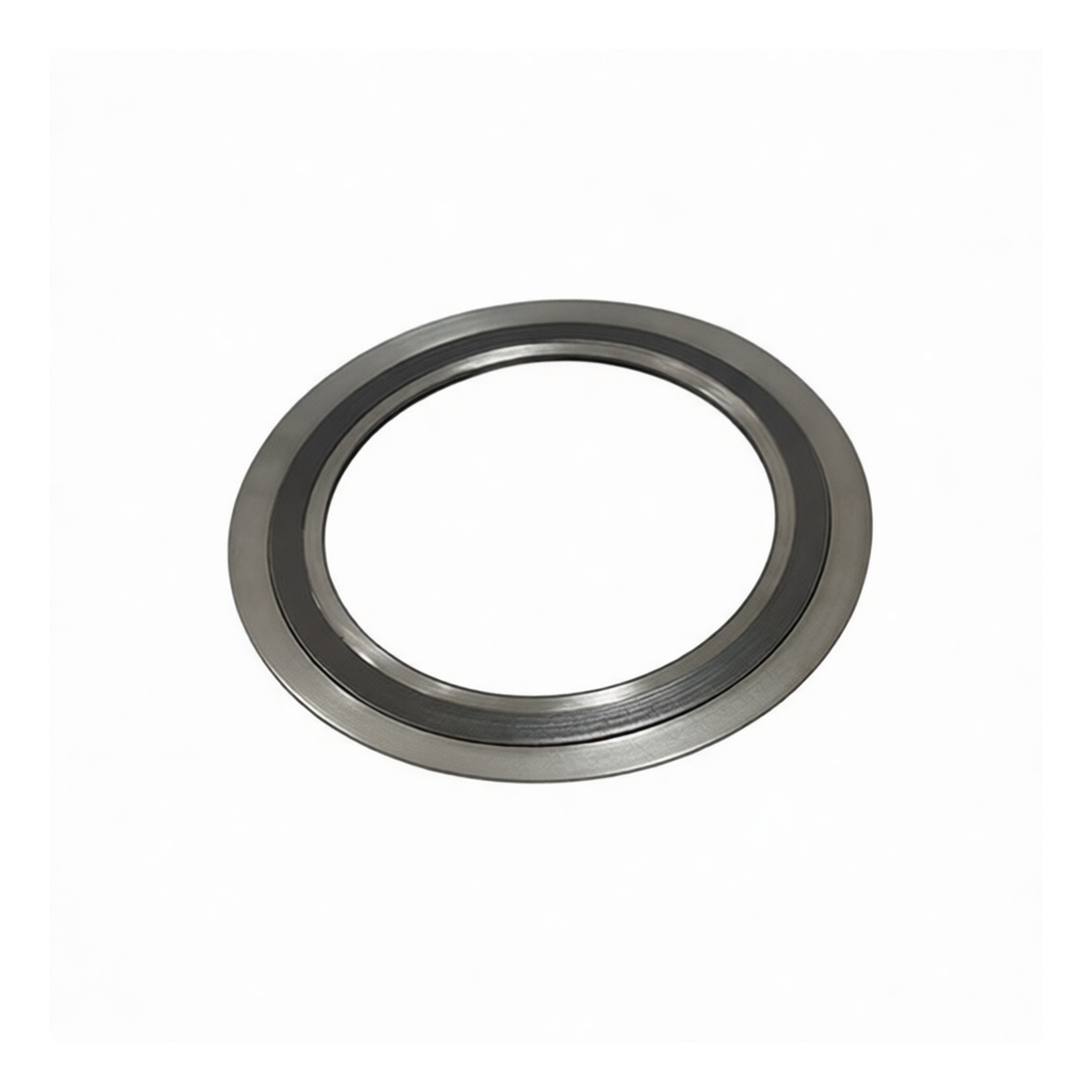

This flanged metal wound gasket is engineered for creating reliable, high-integrity seals in demanding piping and vessel connections. Designed for a nominal pipe size of 0.79 inches and a pressure rating of 232 PSI, it is constructed to perform under significant thermal and mechanical stress. The gasket's layered metal and filler design ensures an effective seal that accommodates flange rotation and surface irregularities, making it a critical component for preventing leaks in high-pressure, high-temperature systems.
Key Features
Engineered with a stainless steel inner and outer ring for precise alignment and compression control
Features a resilient graphite filler layer for superior sealing performance Constructed from corrosion-resistant 304 and 316L stainless steel windings
Designed to meet recognized international standards for dimensional consistency and performance
Provides a robust seal capable of withstanding thermal cycling and high flange pressures
Specifications
Material: 304 & 316L Stainless Steel with Graphite Filler Nominal Size: 0.79 Inch Pressure Rating: 232 PSI Connection Type: Flanged Standards: Manufactured to Industry Standards Design Type: Style D with Inner and Outer Guide Rings
Applications
Sealing flanged connections in chemical and petrochemical processing pipelines High-temperature steam lines and boiler feed systems Heat exchangers, pumps, and valve assemblies General industrial service for oil, gas, and power generation Any application requiring a dependable seal for raised face flanges
