Overview

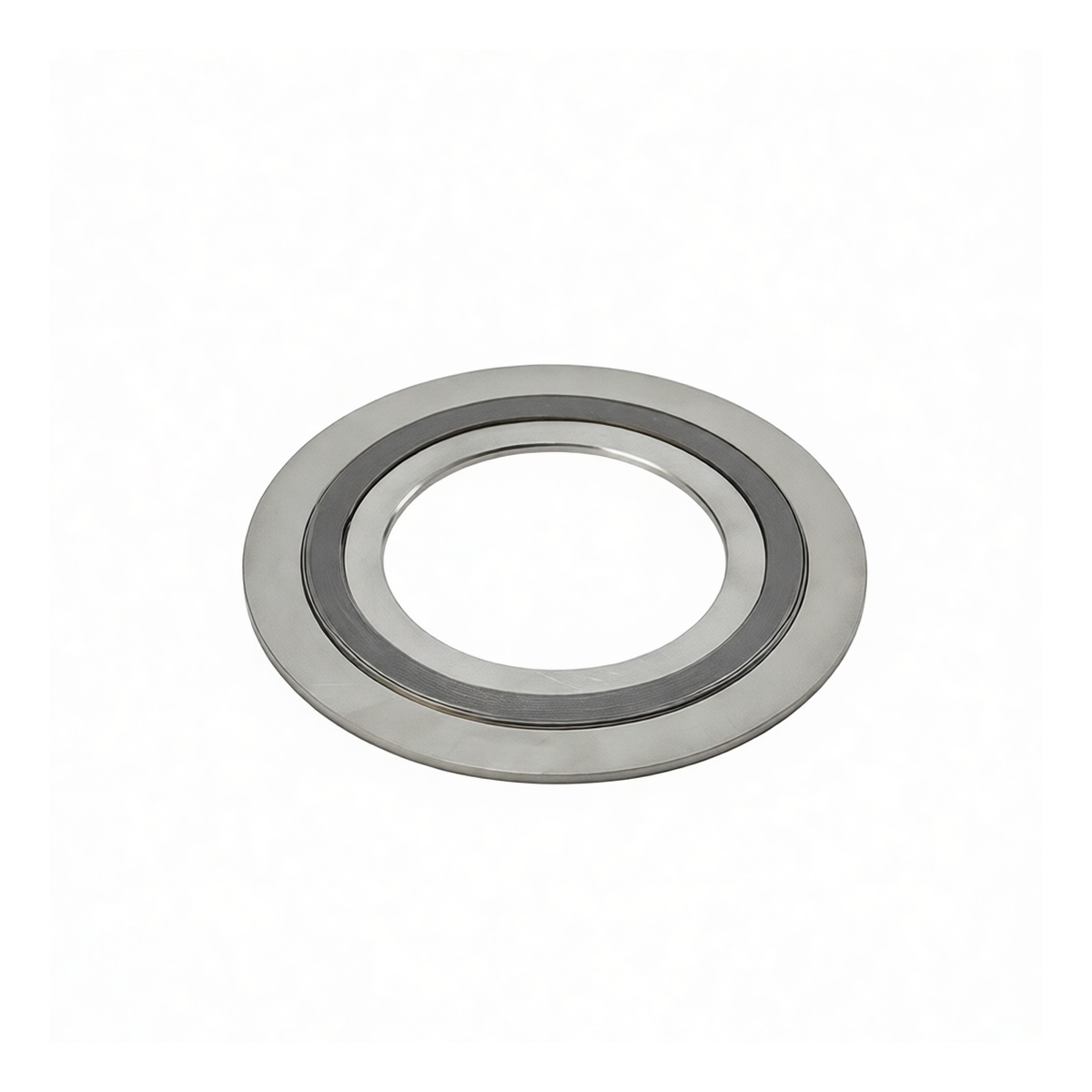

This D-Ring metallic wound gasket is engineered for creating a high-integrity seal in industrial flange connections. It is specifically designed for a nominal pipe size of 1.34 inches and is constructed to withstand demanding service conditions involving elevated pressures, high temperatures, and aggressive media. The gasket's robust, spiral-wound design incorporates resilient graphite filler between layers of stainless steel, providing a seal that compensates for flange irregularities and thermal cycling. Compliance with the HG/T20610-2009 standard ensures consistent dimensional accuracy and performance reliability for maintenance and installation projects.
Key Features
Engineered for nominal pipe size of 1.34 inch flange connections Spiral-wound construction with flexible graphite filler for superior sealing D-Ring design with integral inner and outer stainless steel containment rings Manufactured to meet HG/T20610-2009 standard specifications 304 stainless steel winding and rings for excellent corrosion resistance Suitable for high-pressure and high-temperature fluid system applications
Provides reliable leak prevention in challenging process environments
Specifications
Material: 304 Stainless Steel (Winding & Rings), Flexible Graphite Filler Size: 1.34 Inch Nominal Pipe Size (DN25) Standards: HG/T20610-2009, D2222 Type Connection Type: Flange Gasket Design: D-Ring with Inner and Outer Containment Rings Pack Quantity: 20 Pieces
Applications
Sealing connections in chemical and petrochemical processing pipelines High-temperature fluid transfer systems in power generation
General industrial plumbing and hydraulic systems requiring flange isolation Maintenance and repair operations for pumps, valves, and heat exchangers Refining and hydrocarbon processing equipment
