Overview

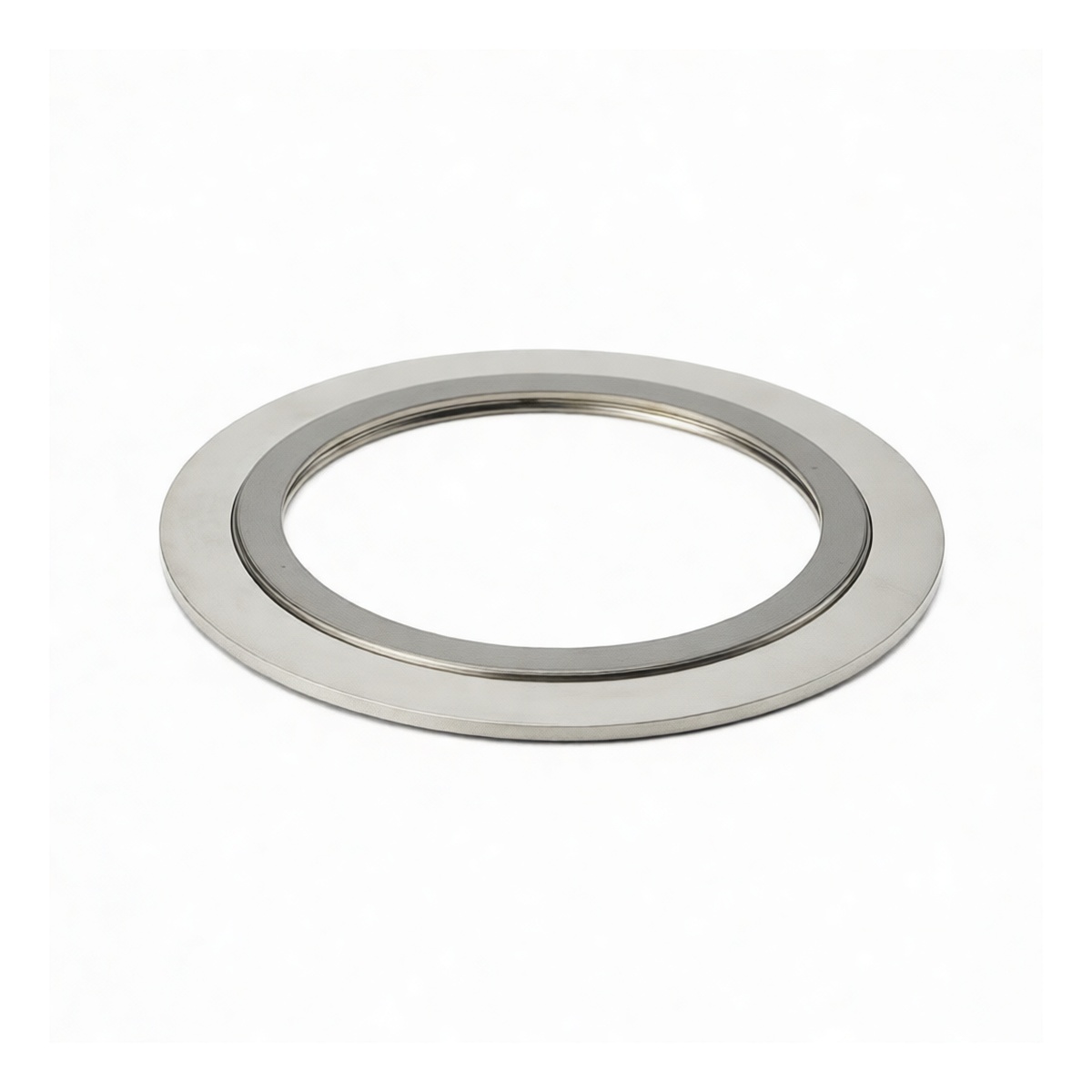

This industrial flange gasket is engineered for high-integrity sealing in demanding piping systems. It is a C2220-style metal wound gasket, constructed with alternating layers of stainless steel windings and a graphite filler, creating a resilient and adaptive seal. The gasket is designed to withstand severe service conditions, including high pressure and temperature fluctuations, making it a critical component for preventing leaks and ensuring system safety and efficiency. Its nominal diameter of 1.93 inches suits a wide range of standard industrial flange connections.
Key Features
C2220 metal wound construction with stainless steel inner and outer rings
Graphite filler provides excellent thermal conductivity and seal recovery Rated for high-pressure applications up to PN160 (approximately 2320 PSI) Manufactured to comply with HG/T20610-2009 industry specifications Corrosion-resistant 304 stainless steel material for long service life The outer ring provides radial stability and prevents gasket over-compression
Suitable for a wide operational temperature range due to graphite core
Specifications
Material: 304 Stainless Steel (windings and rings) with Graphite Filler Nominal Size: DN32 (1.93 inches) Pressure Rating: PN160 Design Standard: HG/T20610-2009 Construction Type: C2220 (With Inner and Outer Steel Rings) Connection Type: Flange Gasket Package Quantity: 25 pieces
Applications
High-pressure process piping in chemical and petrochemical plants
Steam lines and utility systems in power generation facilities
Heat exchanger and boiler connections Refinery and offshore oil & gas pipeline flanges General industrial maintenance for pumps, valves, and compressor connections
