Overview

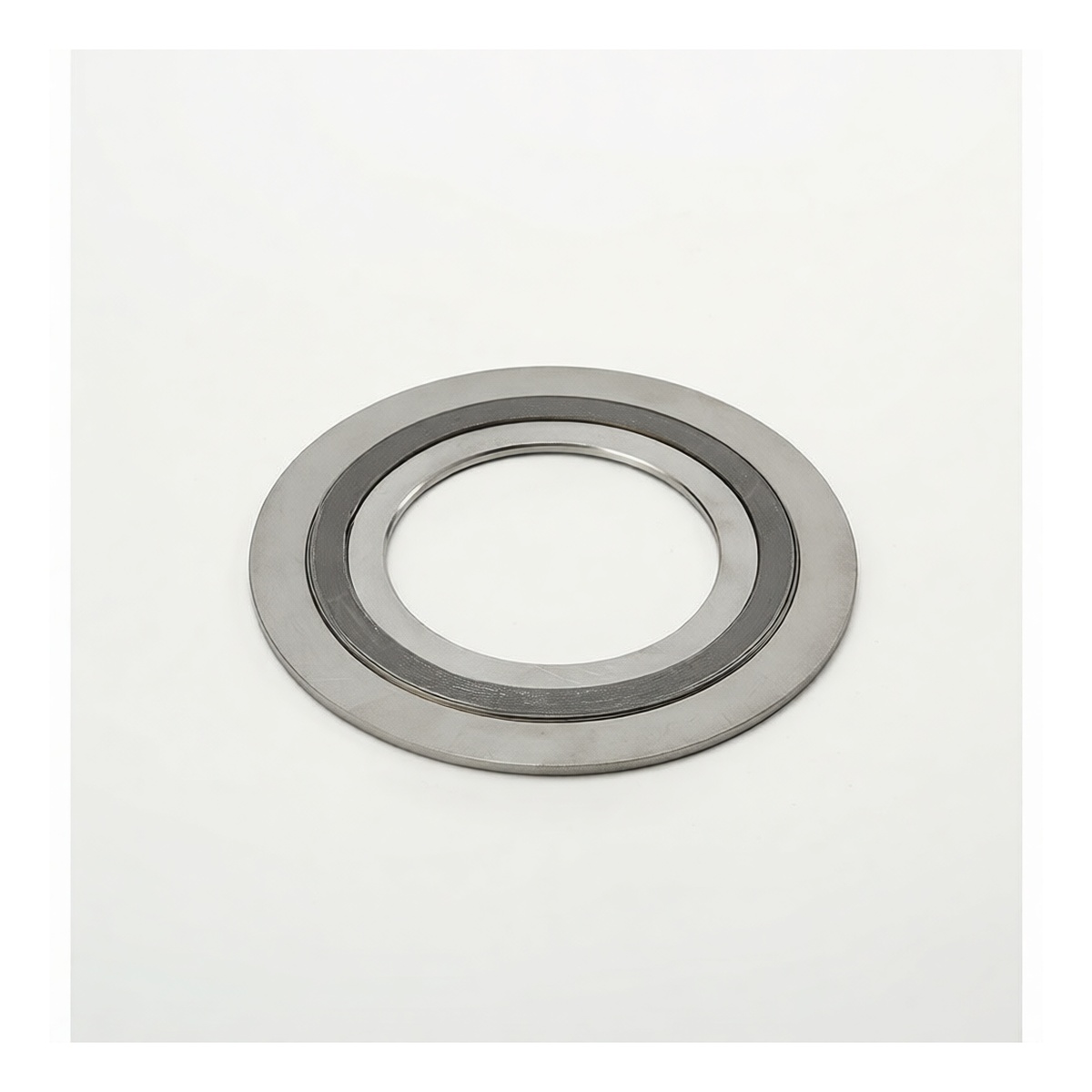

This 17.44-inch stainless steel D-ring gasket is a precision sealing component engineered for high-pressure flange connections in industrial piping systems. It is constructed using a robust metal-wound design that incorporates both an inner and outer containment ring. This configuration ensures a reliable, leak-tight seal capable of withstanding significant pressure, thermal cycling, and mechanical stress, preventing both leakage and gasket blowout in demanding service environments. It is manufactured to conform with the HG/T20610-2009 specification, ensuring consistent quality and dimensional accuracy for reliable performance.
Key Features
Engineered for high-pressure service up to approximately 232 PSI (16 bar) Metal-wound construction with inner and outer containment rings for superior sealing integrity Manufactured to meet HG/T20610-2009 industry standards D-ring shape provides a secure fit on standard flange faces
Stainless steel material offers excellent corrosion resistance
Designed to perform reliably under thermal cycling and variable pressure conditions
Specifications
Material: Stainless Steel Size: 17.44 inches Nominal Pressure Rating: PN16 (Approximately 232 PSI) Standards: Meets HG/T20610-2009 Industry Standards Connection Type: Flange Gasket Style: D-Ring with Inner and Outer Ring Package Quantity: 3
Applications
General industrial process piping
Chemical and petrochemical processing
Power generation and utilities
Oil and gas pipeline connections High-temperature and high-pressure fluid handling Any application requiring a durable, reliable seal for ANSI Class 150 flanges
