Overview

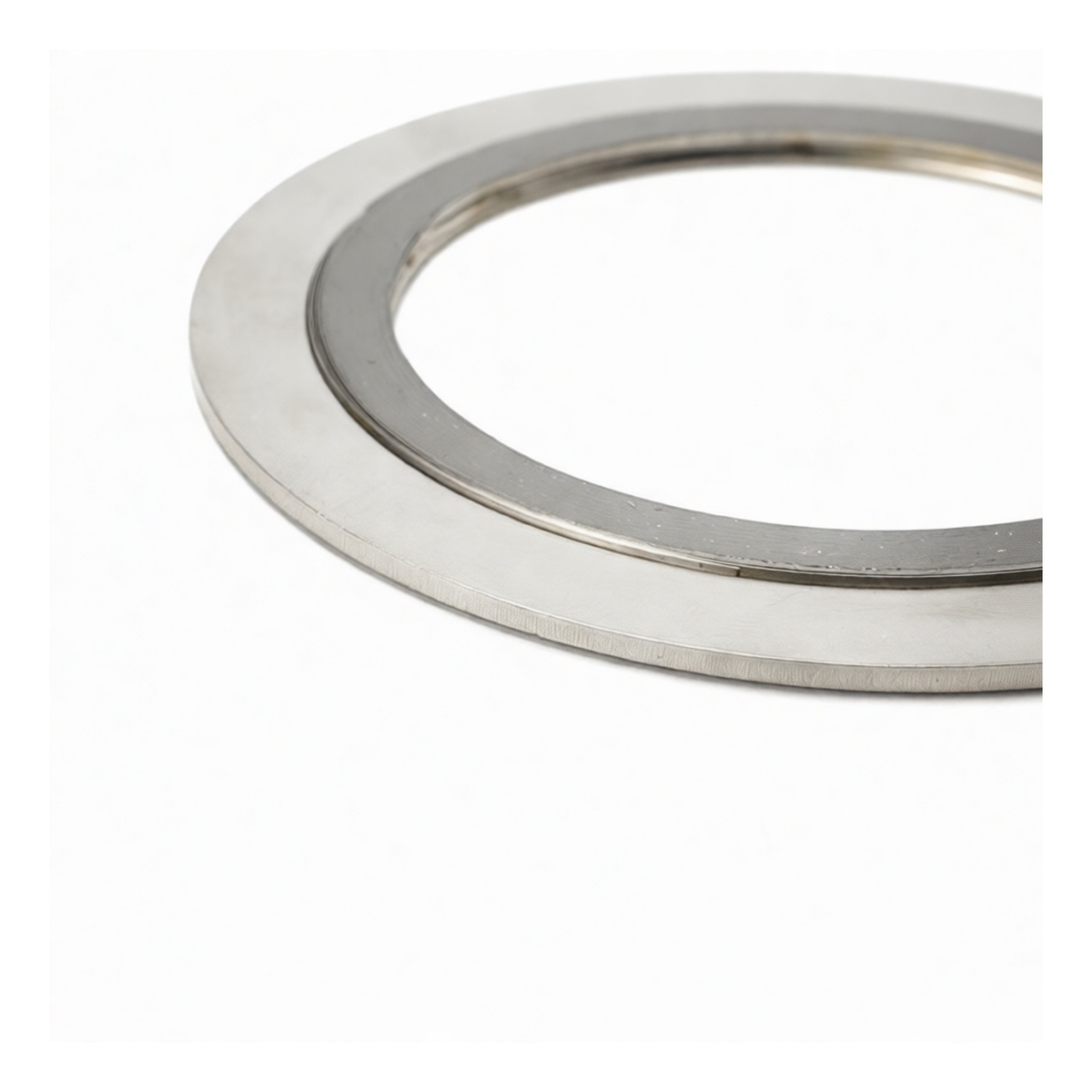

This C-shaped metal wound gasket is engineered for creating a high-integrity, pressure-resistant seal on 2.5-inch flange connections. It is specifically designed for demanding industrial fluid transfer applications, including hose reel systems, where reliable sealing under variable pressure and temperature is critical. The gasket's construction ensures optimal performance in environments subject to vibration, thermal cycling, and mechanical stress, providing a durable and long-lasting seal that minimizes downtime and maintenance.
Key Features
Robust C-shaped wound metal construction for superior sealing performance
Graphite filler material provides excellent thermal and chemical resistance Corrosion-resistant 304 stainless steel inner and outer reinforcing rings
Engineered to withstand pressure cycling and flange rotation
Conforms to recognized industry dimensional and material standards Designed for easy installation and removal on standard 2.5-inch flanges
Specifications
Material: 304 Stainless Steel with Graphite Filler Size: 2.5 Inches (Nominal Pipe Size) Connection Type: Flange Design Standard: HG/T20610-2009, Type C2220 Pressure Rating: PN16 (Approximately 232 PSI) Reinforcement: 304 Stainless Steel Inner and Outer Rings Pack Quantity: 24 Pieces
Applications
Sealing connections on industrial hose reels and fluid transfer systems General service on pumps, valves, and heat exchangers in chemical and petrochemical processing
Utility and process piping systems requiring a reliable metallic gasket Maintenance and repair operations for standard 2.5-inch flange assemblies
