Overview

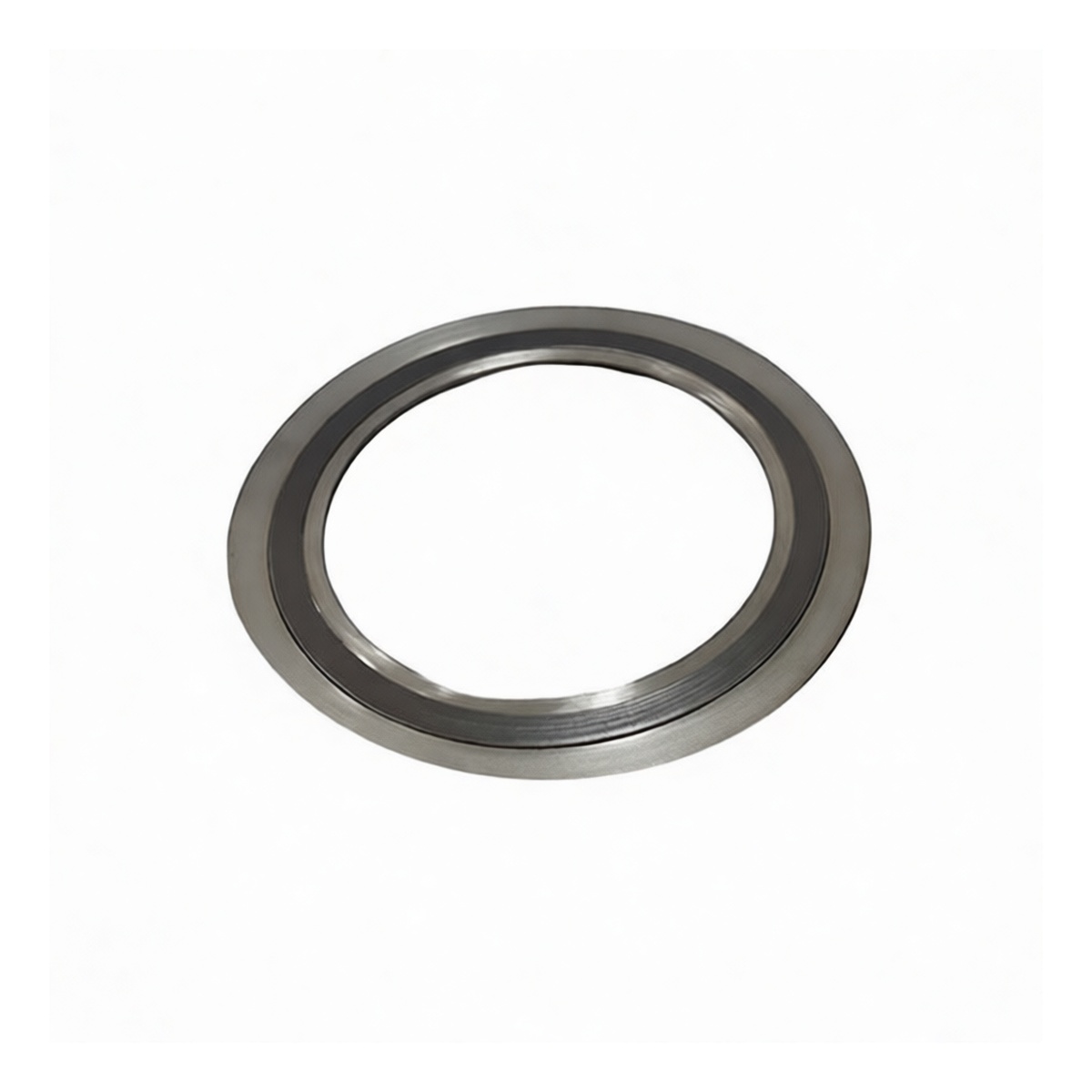

This industrial-grade flange gasket is engineered for high-integrity sealing in critical Class 900 piping systems. It is a metal wound gasket featuring a robust construction with both inner and outer rings, designed to withstand extreme pressures, thermal cycling, and corrosive environments. Manufactured in strict compliance with ASME B16.20-2007 standards, it ensures reliable performance and compatibility with standardized flange assemblies, providing a leak-proof seal for demanding process applications.
Key Features
Engineered to ASME B16.20-2007 standards for guaranteed dimensional accuracy and performance Stainless Steel 304 winding and rings for excellent corrosion resistance and durability
Reinforcing inner and outer rings for improved gasket handling and bolt load distribution
Flexible graphite filler material for effective sealing across a wide temperature range Specifically designed for use on Class 900 pound flanges, indicating high-pressure service
Individually supplied to prevent damage and maintain sealing surface integrity
Specifications
Material: Stainless Steel 304 Nominal Pipe Size: 2.5 inches Pressure Class: 900 LB Standards: ASME B16.20-2007 Design: Metal Wound with Inner and Outer Rings Filler Material: Flexible Graphite Outer Ring Material: Carbon Steel (CRS) with 304 Stainless Steel Inner Ring Material: Stainless Steel 304 Connection Type: Flange Package Quantity: 12
Applications
High-pressure process piping in chemical and petrochemical plants
Refinery and hydrocarbon processing systems
Power generation and steam line applications
Industrial boiler feed and output connections Any application requiring a certified, high-performance seal for ASME Class 900 flanges
