Overview

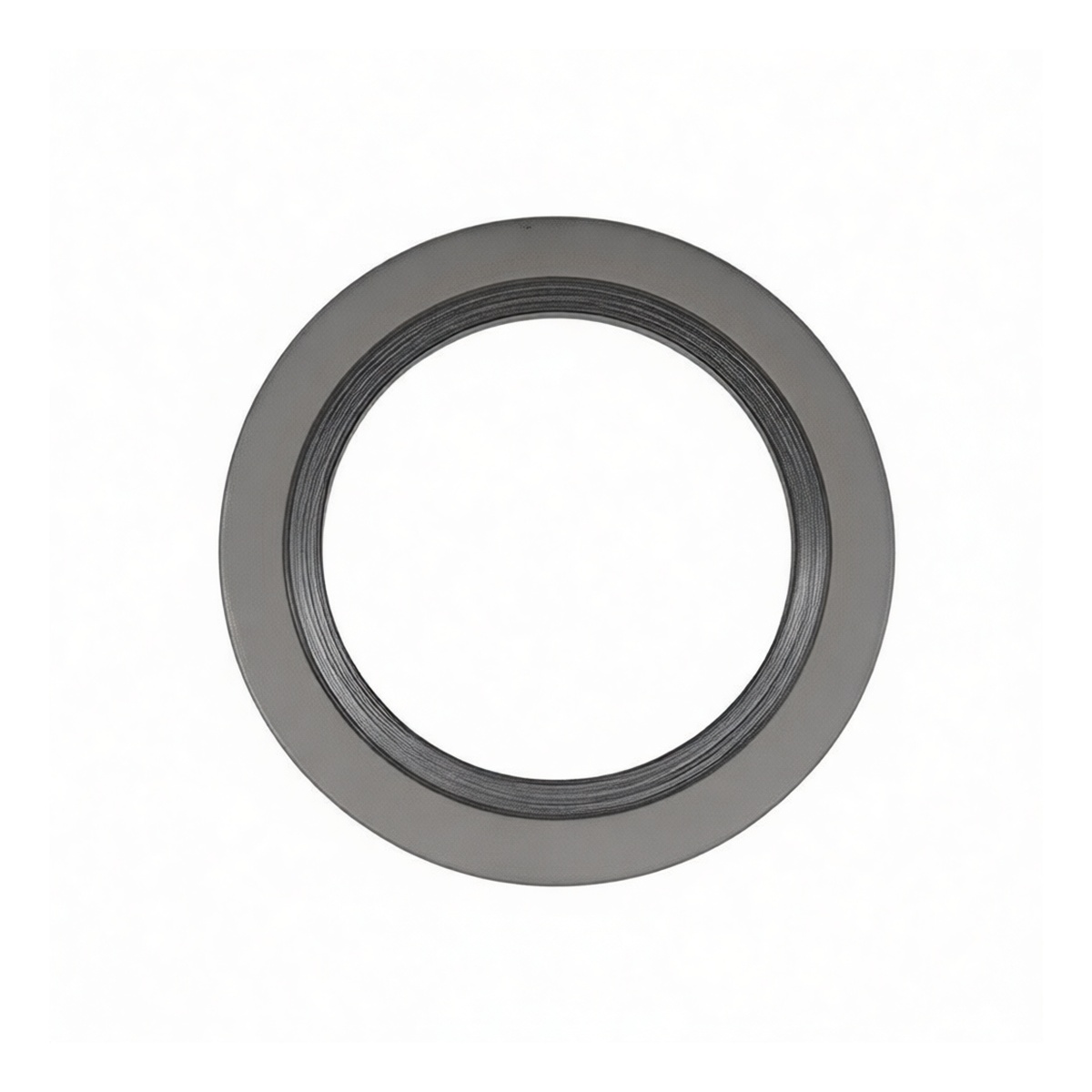

This DN40 flanged metal gasket is a precision sealing component engineered for high-integrity connections in demanding industrial piping systems. It is specifically constructed to create a reliable, leak-tight seal between flanged joints operating under high pressure and temperature. The gasket's robust design and material composition ensure long-term performance and resistance to harsh process media, making it a critical part for maintaining system safety and efficiency.
Key Features
Engineered for a 600LB pressure class rating, suitable for high-pressure service Constructed with a durable 304 stainless steel inner core and outer centering ring
Features a flexible graphite filler layer for superior conformability and seal
Conforms to recognized industry dimensional standards for guaranteed fit The metal-wound design provides excellent resilience and recovery under bolt load Outer ring prevents over-compression and aids in proper installation alignment
Specifications
Material: 304 Stainless Steel with Graphite Filler Nominal Size: DN40 (approximately 1.5 inches) Pressure Rating: 600LB Design Standard: Industry Standard for Metal Wound Gaskets Connection Type: Flanged Configuration: Style C with Outer Centering Ring Package Quantity: 36 pieces
Applications
Sealing high-pressure flanged connections in chemical and petrochemical processing
Steam lines and utility systems in power generation facilities Oil and gas pipeline valves, pumps, and vessel connections
Industrial heating and cooling systems requiring thermal cycling resistance General process plant maintenance and repair operations
