Overview

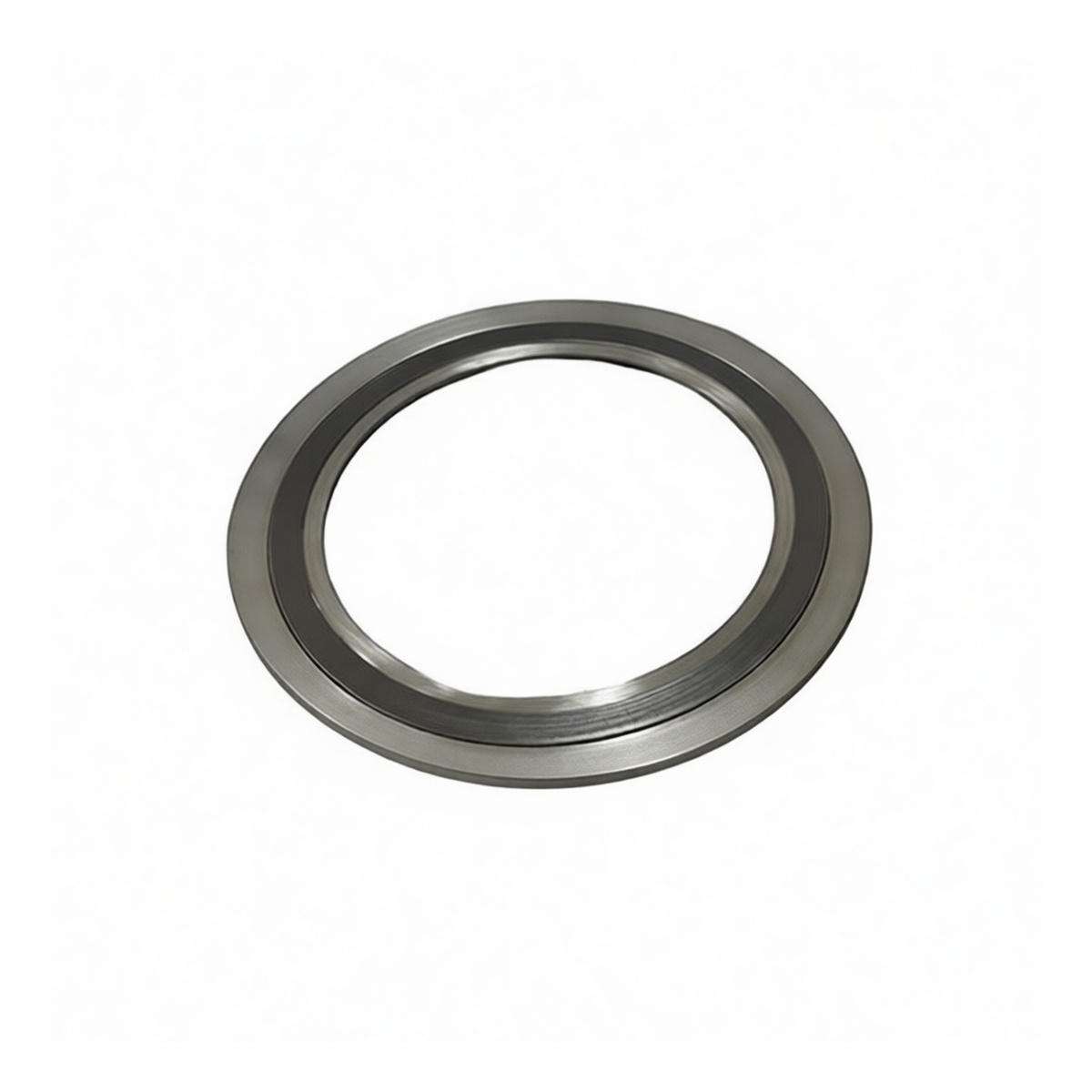

This D-Ring Style Metal Wound Gasket is a precision sealing component designed for high-integrity flanged connections in demanding process piping systems. It is engineered to provide a reliable, leak-tight seal against a wide range of fluids and gases under high pressure and temperature conditions. The gasket is manufactured to specific industry standards, ensuring dimensional consistency, material quality, and performance predictability for maintenance, repair, and operations (MRO) applications.
Key Features
Constructed with a resilient wound metal and filler design for superior sealing performance. Features both inner and outer carbon steel retaining rings for enhanced stability and crush resistance. The 304 stainless steel winding offers excellent corrosion resistance in many service environments. The flexible graphite filler provides conformability and thermal stability across a wide temperature range. Engineered for high-pressure applications, suitable for systems rated up to 600 lbs. Pre-formed D-shape with flanged design for easy alignment and installation on standard raised face flanges.
Specifications
Material: 304 Stainless Steel winding with flexible graphite filler, carbon steel retaining rings. Nominal Pipe Size: 3.19 inches. Pressure Class: 600 lbs. Style: D-Ring with inner and outer rings (Type D2222 as per standard). Standards: Conforms to recognized industry standards for material and dimensions. Connection Type: Flanged. Package Quantity: 20 pieces.
Applications
Ideal for sealing connections in chemical and petrochemical processing plants. Suitable for use in power generation facilities, including steam and utility lines. Applied in oil and gas pipelines, refineries, and offshore platforms. Used in high-temperature and high-pressure water and steam services. Effective for sealing in HVAC and industrial refrigeration systems operating under pressure.
