Overview

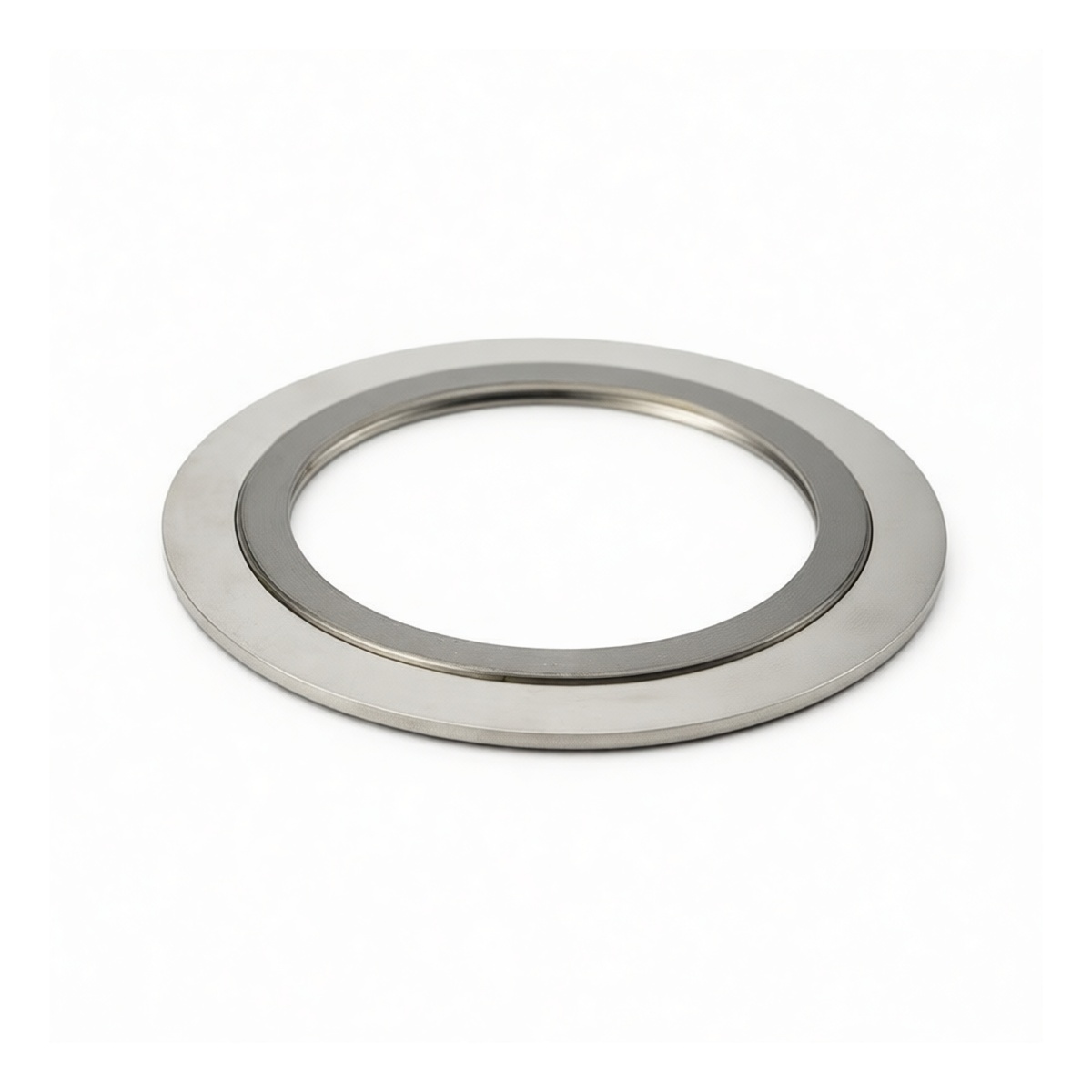

This 5-inch spiral wound gasket is engineered for high-integrity sealing in demanding industrial flange connections. Manufactured in strict compliance with ASME B16.20-2007 standards, it is designed to provide a reliable, leak-tight seal in high-pressure and high-temperature piping systems. The gasket's robust construction ensures long-term performance and resistance to harsh chemicals and thermal cycling, making it a critical component for maintaining system safety and efficiency.
Key Features
Manufactured to ASME B16.20-2007 standards for guaranteed dimensional accuracy and performance. Constructed from Stainless Steel 304 for superior corrosion resistance in a wide range of service media. Spiral wound design with a resilient graphite filler creates a durable, pressure-adaptive seal. Features an integral centering ring for precise alignment and simplified installation on flanges. Rated for a pressure class of 600 LB, suitable for demanding high-pressure applications. Supplied in a convenient package of two gaskets for project efficiency.
Specifications
Material: Stainless Steel 304 Nominal Pipe Size: 5 inch Pressure Class: 600 LB Standards: ASME B16.20-2007 Connection Type: Flanged Package Quantity: 2
Applications
High-pressure process piping in chemical and petrochemical plants. Power generation systems, including steam and turbine lines. Oil and gas pipeline flanges and manifold connections. Industrial heating and cooling systems requiring reliable thermal sealing. General industrial maintenance and repair of ANSI-rated flanged equipment.
