Overview

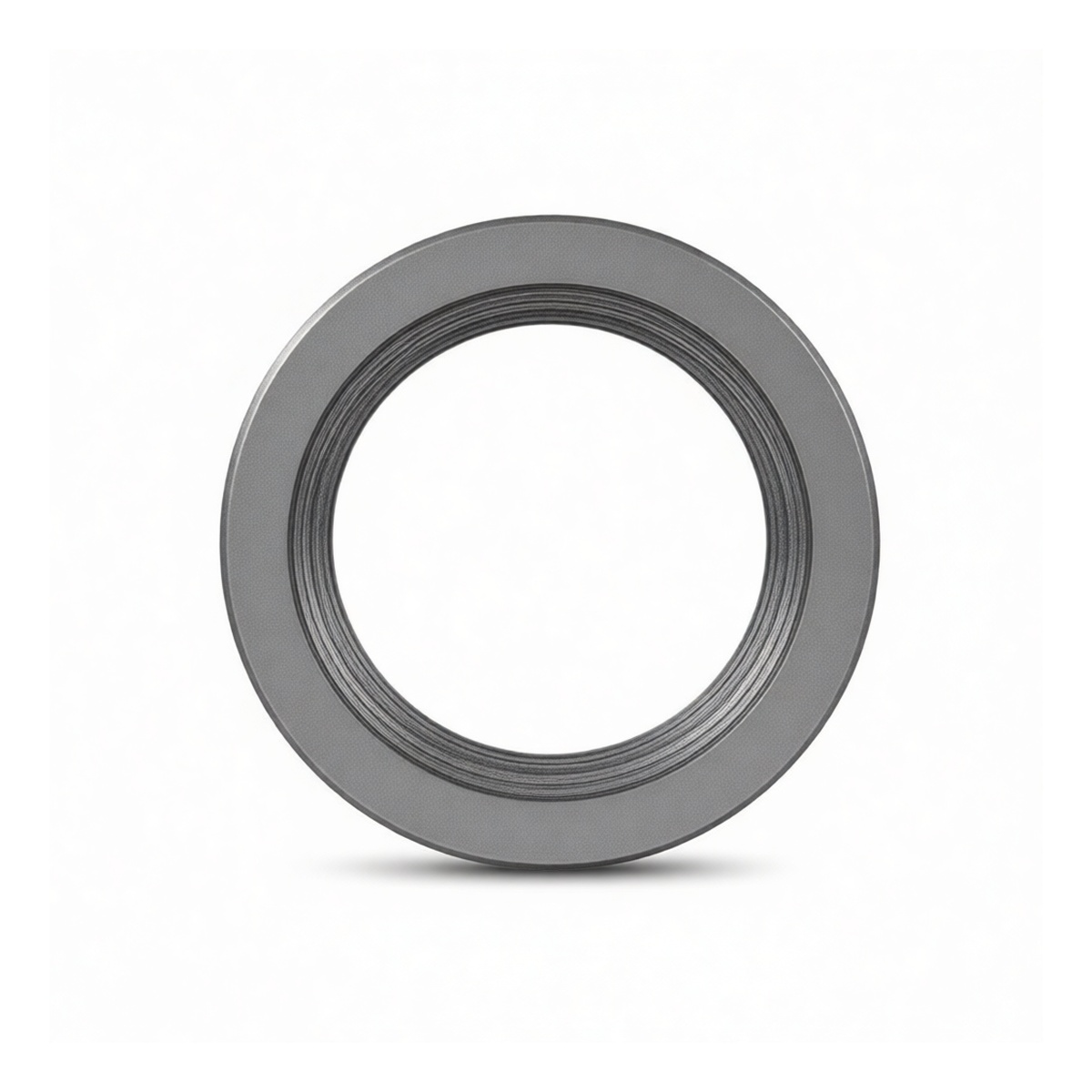

This high-performance metal ring gasket is engineered for critical sealing applications in high-pressure stainless steel piping systems. Manufactured in strict compliance with the HG/T20610-2009 industry standard, it is designed to create a leak-tight seal between flanges under demanding service conditions. The gasket is specifically configured for a nominal pipe diameter of 4 inches (DN100) and is rated for PN63 pressure class, making it suitable for robust industrial processes. Its intelligent C-shaped design with an outer reinforcing ring ensures optimal compression and seating within the flange, providing long-term reliability and preventing blow-out under pressure fluctuations or system vibration.
Key Features
C-shaped metallic winding core with an outer containment ring Pressure rating of PN63 (approximately 915 PSI) Constructed with 304 stainless steel windings for corrosion resistance
Flexible graphite filler provides superior sealability and thermal conductivity Outer ring guides installation and prevents over-compression
Engineered for resilience and excellent recovery characteristics
Suitable for a wide range of industrial media and temperatures
Specifications
Standard: HG/T20610-2009 Nominal Pipe Size: 4 inches (DN100) Pressure Class: PN63 Construction: C-Type with Outer Ring Metal Windings: 304 Stainless Steel Filler Material: Flexible Graphite Inner Layer Metal: 304 Stainless Steel Pack Quantity: 12
Applications
High-pressure flange connections in chemical and petrochemical processing Heat exchangers, reactors, and pressure vessel manifolds
Utility steam lines and power generation systems
Oil and gas transmission pipelines and refining equipment Any stainless steel piping system requiring a reliable, high-integrity seal under significant pressure and temperature cycles
