Overview

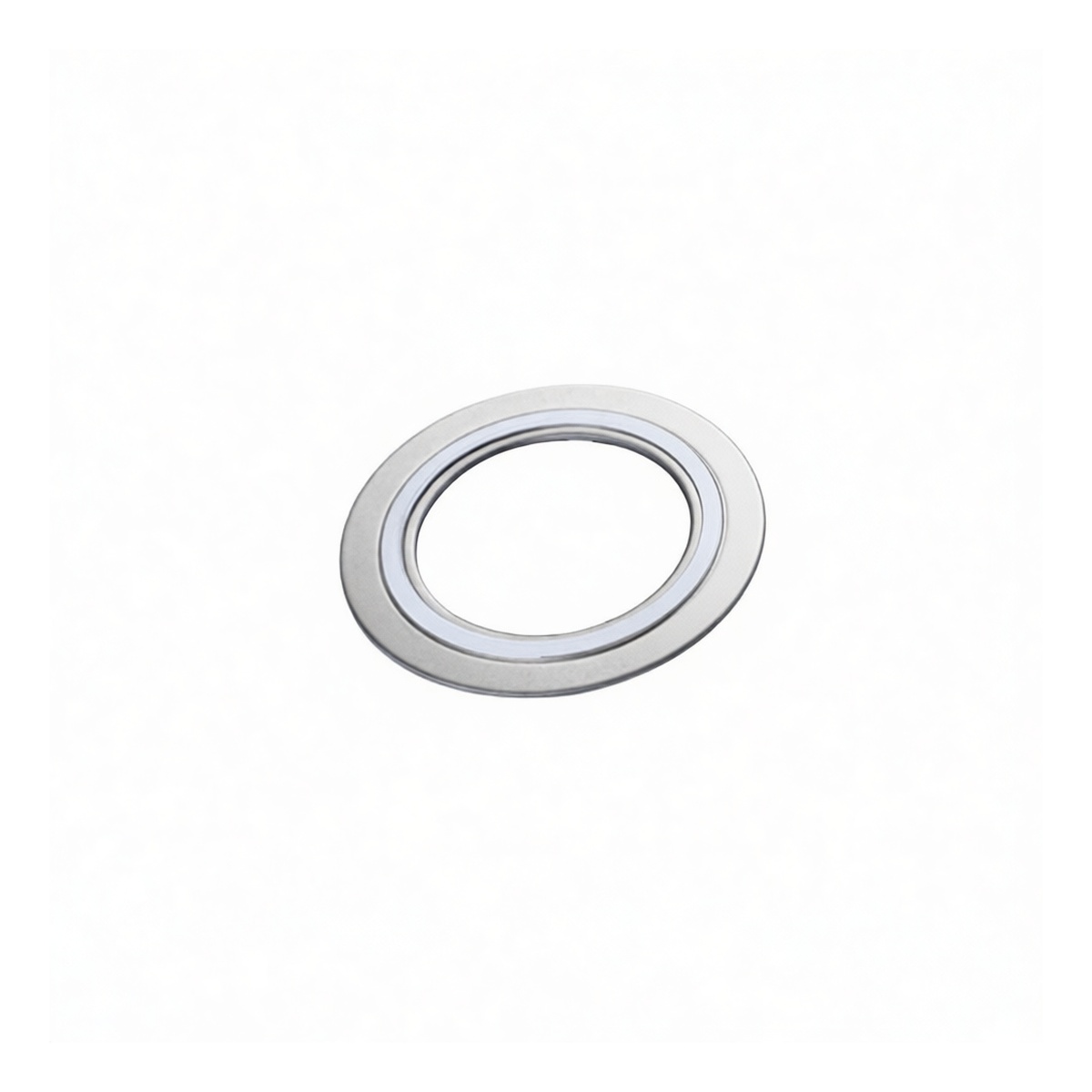

This metal spiral wound gasket is engineered for high-integrity sealing in critical process piping systems. Manufactured in strict compliance with the HG/T20610-2009 standard, it ensures dimensional accuracy and reliable performance in demanding industrial environments. The gasket is specifically designed for use with 2.5 inch NPS flanges operating at a nominal pressure rating of PN 16 (approximately 232 PSI). Its robust construction provides a resilient, leak-tight seal capable of withstanding thermal cycling, vibration, and system pressure fluctuations common in chemical, petrochemical, and power generation applications.
Key Features
Precision-wound spiral construction for superior sealing resilience 304 stainless steel inner and outer rings for precise centering and bolt load distribution Primary sealing element wound from 304 stainless steel with a PTFE (polytetrafluoroethylene) filler
Excellent chemical resistance provided by the inert PTFE filler material
Designed to seal effectively on standard raised face flange connections
Individually packaged to prevent damage and contamination
Specifications
Standard: HG/T20610-2009 Nominal Pipe Size: 2.5 inch NPS Pressure Rating: PN 16 (232 PSI) Gasket Designation: D2232 Construction: 304 Stainless Steel Windings / PTFE Filler / 304 Stainless Steel Inner and Outer Rings Temperature Range: -328°F to 500°F For Use With: Metal Pipes and Flanges Pack Quantity: 12 gaskets per box
Applications
Sealing flanges in chemical and petrochemical processing systems High-pressure steam and utility lines in power generation facilities
General industrial process piping for corrosive or volatile media
Refinery and offshore oil and gas pipeline connections Applications requiring frequent disassembly and reassembly due to gasket resilience
