Overview

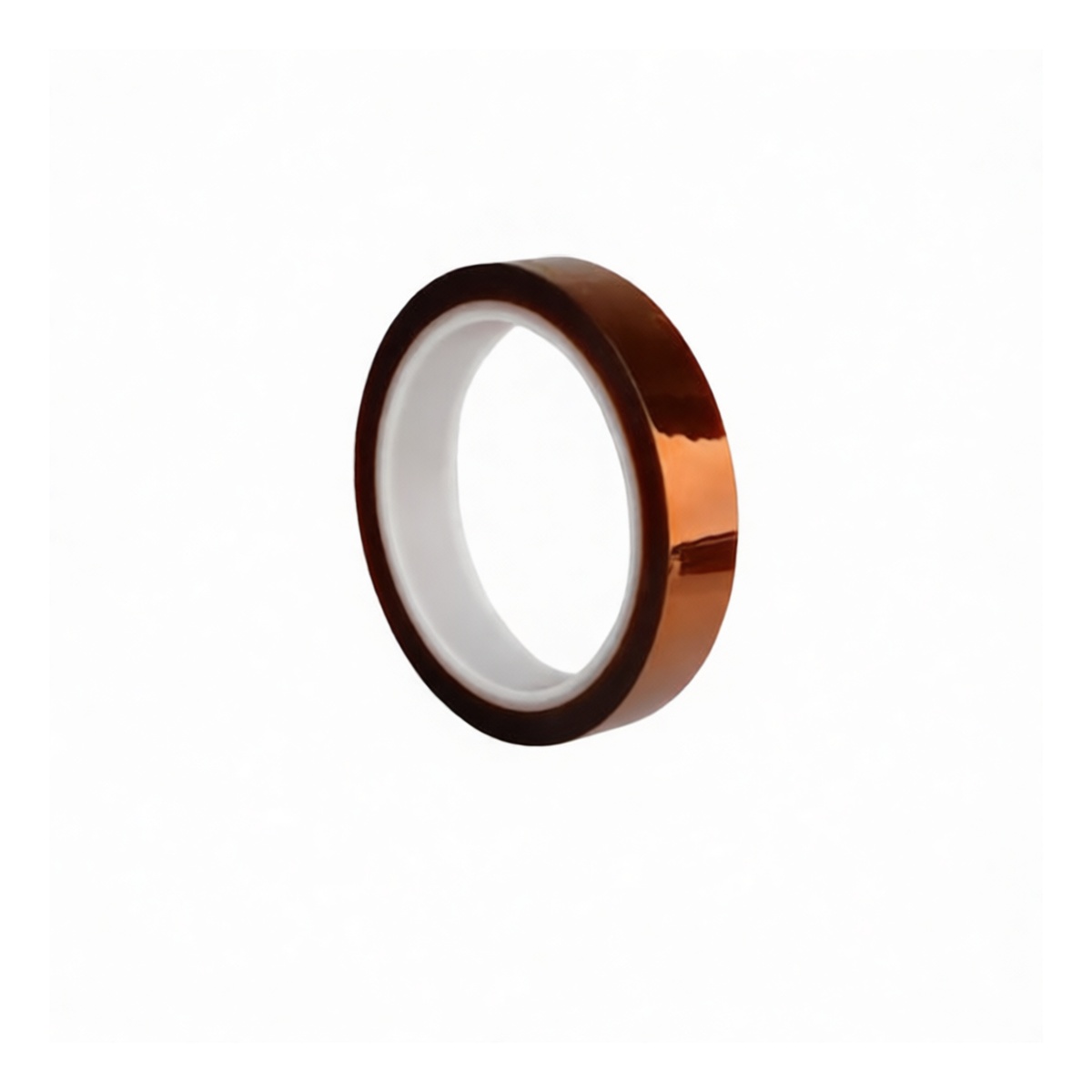

This high-performance polyimide tape is engineered for critical surface protection and masking applications in demanding manufacturing environments. Its durable polyimide film backing, combined with a reliable acrylic adhesive system, provides a robust barrier against high temperatures, solder, and various process contaminants. The tape is designed for clean application and removal, protecting sensitive components and surfaces without leaving adhesive residue, thereby streamlining production workflows and reducing rework.
Key Features
Exceptional high-temperature resistance for continuous operation up to 500°F
Durable polyimide film backing provides excellent abrasion and puncture resistance
Acrylic adhesive offers strong initial tack and reliable bonding
Clean removal with minimal risk of adhesive residue or surface damage
Good conformability for masking irregular surfaces and components Resistance to many solvents, fluxes, and chemicals used in electronics assembly
Specifications
Chemical Base: Polyimide Adhesive Type: Acrylic Tape Width: 0.47 in Tape Length: 108.27 ft per roll Thickness: 0.0028 in (approx.) Temperature Rating: Up to 500°F continuous Standards: Meets Industry Standards for high-temperature masking Package Quantity: 12 rolls per case
Applications
Masking during wave soldering and reflow soldering processes Protection during powder coating, e-coating, and conformal coating High-temperature masking in automotive and aerospace component manufacturing Surface protection for printed circuit boards (PCBs) and sensitive electronics General high-temperature masking and holding in fabrication and assembly
