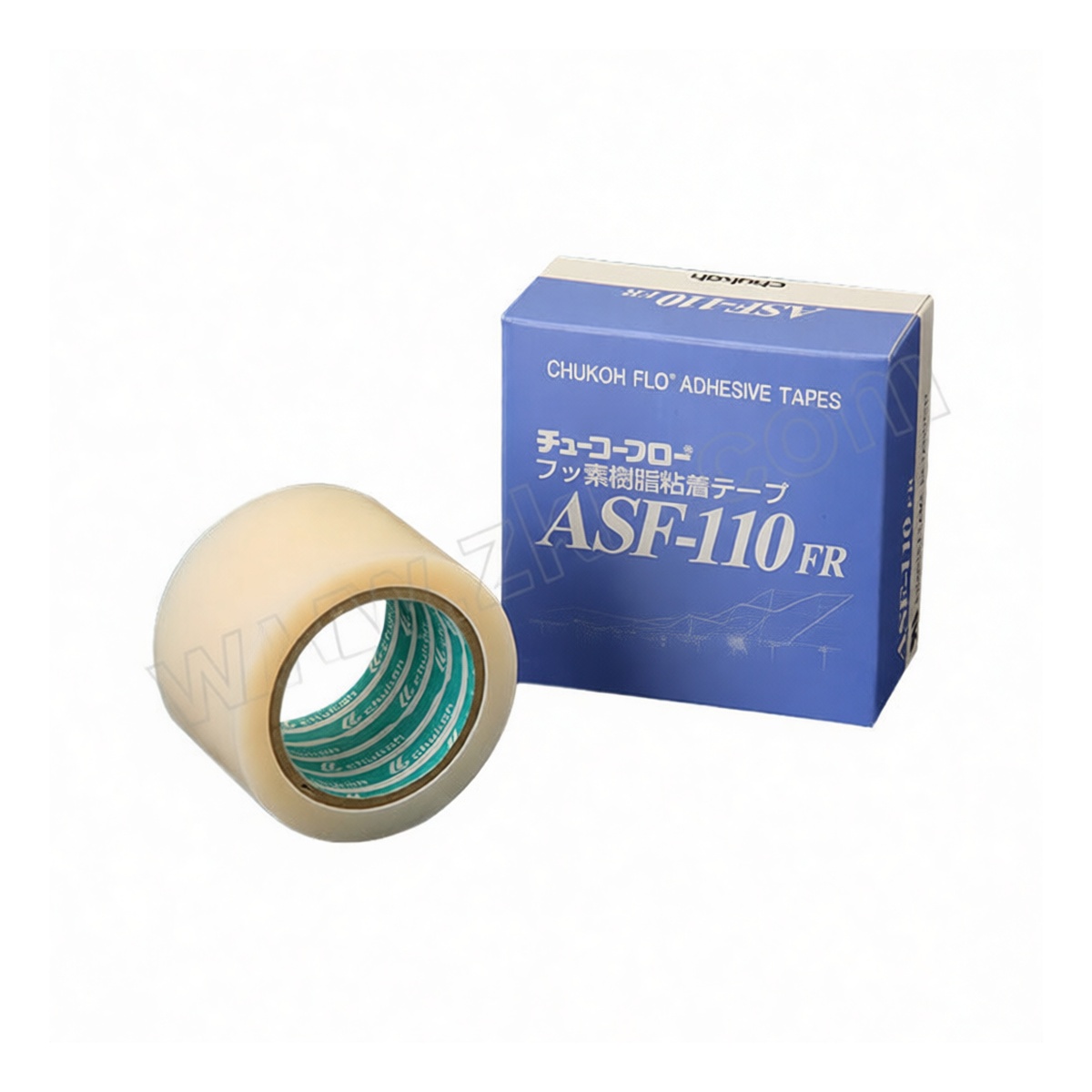

PTFE Film Surface Protection Tape, 1.97 in x 32.81 ft, Acrylic Adhesive
Overview
This PTFE film surface protection tape is engineered for demanding industrial applications where protecting sensitive substrates is critical. It provides a durable, chemically resistant barrier during manufacturing, assembly, and transport processes. The tape's core is a high-performance PTFE film, offering superior non-stick properties and high-temperature tolerance, while the specialized acrylic adhesive ensures secure application and clean removal without leaving adhesive residue. It is designed to safeguard surfaces from contaminants such as solder, coatings, and chemical splatter.
Key Features
Constructed from a 0.005-inch thick PTFE film for durability and chemical resistance. Acrylic adhesive system provides strong initial tack and clean, residue-free removal. Withstands continuous operating temperatures up to 500°F. Inherent non-stick surface prevents adhesion of process materials like solder and epoxy. Meets relevant industry standards for flame retardancy (FR). Offers excellent dielectric properties for electrical insulation applications.
Specifications
Chemical Base: PTFE Adhesive Type: Acrylic Tape Width: 1.97 inches Tape Length: 32.81 feet per roll Film Thickness: 0.005 inches Temperature Resistance: Up to 500°F Standards: Meets Industry Standards
Applications
Protecting work surfaces, platens, and fixtures in electronics soldering and rework. Masking sensitive components and areas during conformal coating, potting, or painting. Safeguarding glass, ceramic, and polished metal surfaces during fabrication. Use as a release liner or non-stick layer in composite layup and curing processes. General-purpose high-temperature masking and protection in industrial maintenance.
