Overview

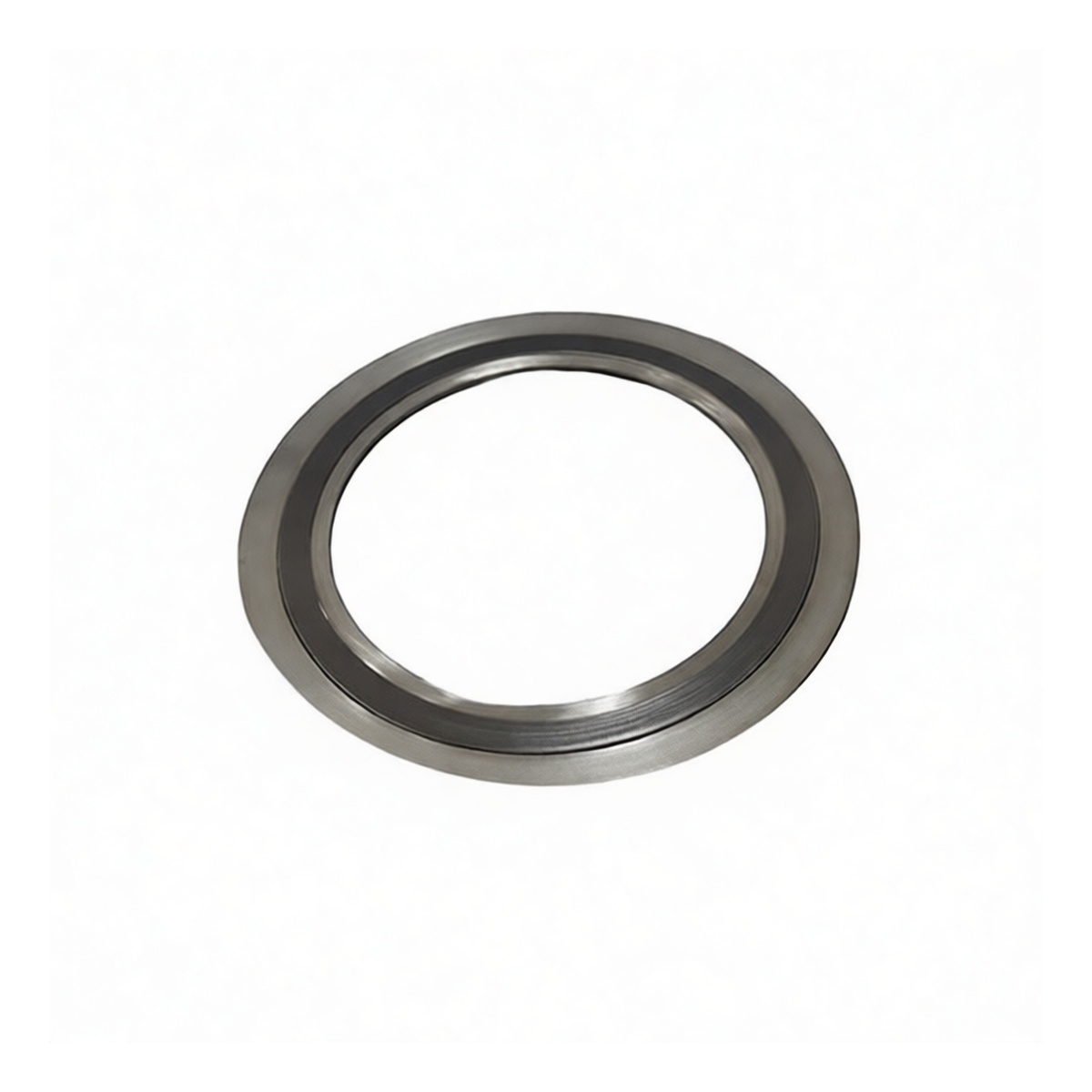

This 1 Inch Stainless Steel Flanged Spiral Wound Gasket is a precision sealing component designed for critical service in high-pressure and high-temperature piping systems. Engineered to create a reliable, leak-tight seal between flanged connections, it is constructed for durability and performance in demanding industrial environments, including those involving aggressive chemicals and thermal cycling. Its standardized dimensions ensure compatibility and a proper fit in corresponding ANSI-class flanges.
Key Features
Spiral wound construction for superior resilience and sealing 304 stainless steel windings for strength and corrosion resistance
Graphite filler material providing excellent thermal conductivity and chemical inertness 316L stainless steel inner and outer rings for enhanced seating and handling Rated for pressure applications up to 740 PSI (PN40)
Conforms to recognized industry dimensional standards for reliability Pre-packaged for convenient inventory and job site handling
Specifications
Material: Stainless Steel (304 windings, 316L rings, Graphite filler) Size: 1 inch nominal pipe size (NPS) Standards: Meets Industry Standards (HG/T20610-2009, ANSI B16.20) Connection Type: Flanged Nominal Outer Diameter: Approximately 2.5 inches Pressure Rating: 740 PSI (PN40) Pack Quantity: 36 pieces
Applications
Sealing connections in chemical and petrochemical processing pipelines High-pressure steam lines and power generation systems
Oil and gas transmission and refining applications
Industrial heating and cooling systems General process piping in manufacturing and utility plants
