Overview

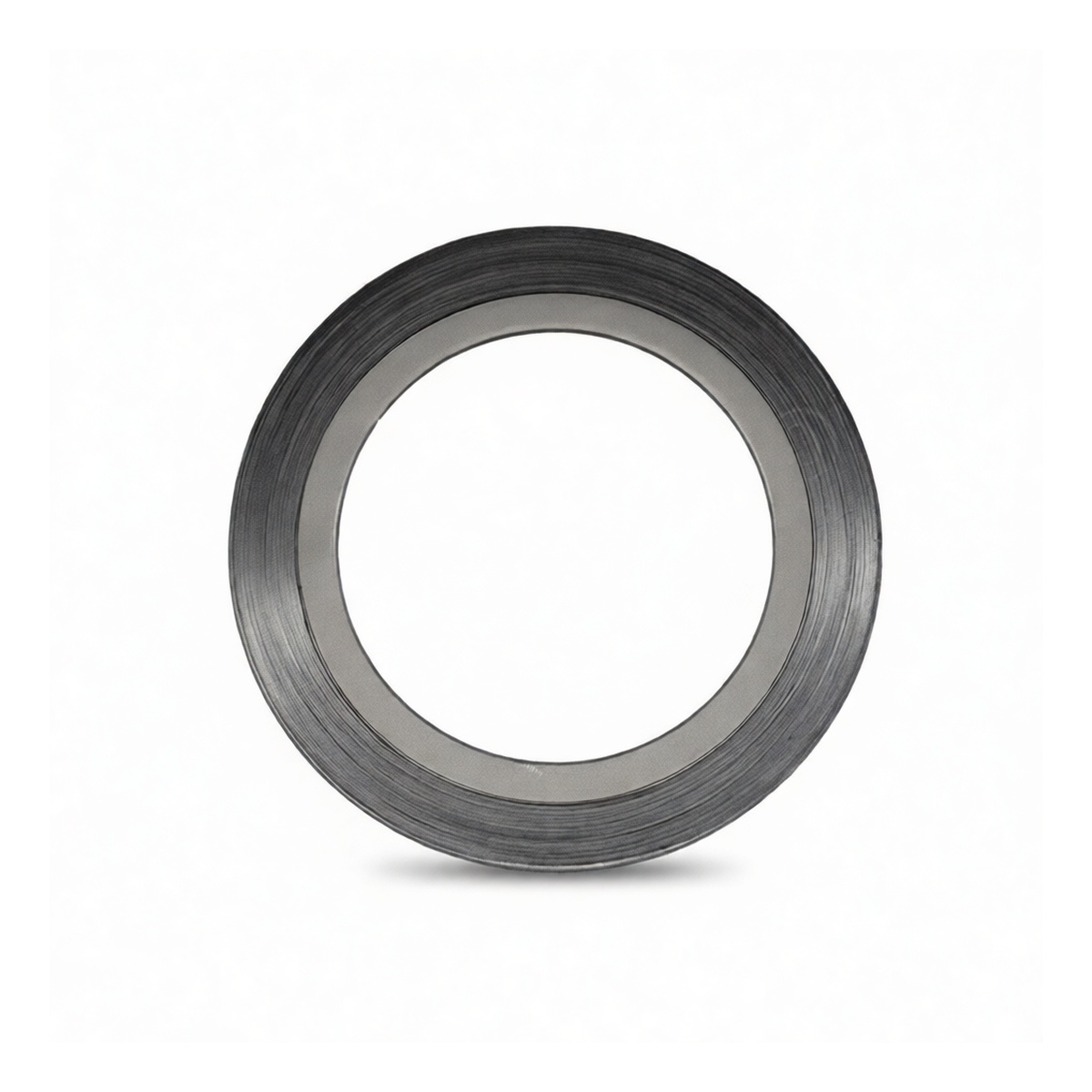

This 14-inch, 150LB pressure-rated spiral wound gasket is engineered for critical sealing applications in industrial piping systems. It is manufactured to the exacting requirements of the ASME B16.20-2007 standard, ensuring dimensional accuracy and reliable performance in high-pressure, high-temperature environments. The gasket features a robust construction with a corrosion-resistant 316L stainless steel inner ring, providing structural integrity and preventing gasket collapse into the pipeline.
Key Features
Constructed from 316L stainless steel for superior corrosion resistance Spiral wound design with graphite filler for resilient, high-integrity sealing Integrated 316L stainless steel inner ring for radial stability and blow-out protection Conforms to ASME B16.20-2007 standard for dimensional interchangeability Rated for 150-pound flange connections, suitable for demanding service
Graphic filler provides excellent thermal stability and sealing performance
Specifications
Material: 316L Stainless Steel Size: 14 inch Standards: ASME B16.20-2007 Connection Type: Flange Pressure Class: 150LB Inner Ring Material: 316L Stainless Steel Filling Material: Graphite Pack Quantity: 2
Applications
Sealing high-pressure and high-temperature flange connections in chemical processing
Petroleum refining and hydrocarbon service pipelines
Power generation and steam system applications
Industrial water and wastewater treatment systems General industrial plant maintenance and pipeline construction
