Overview

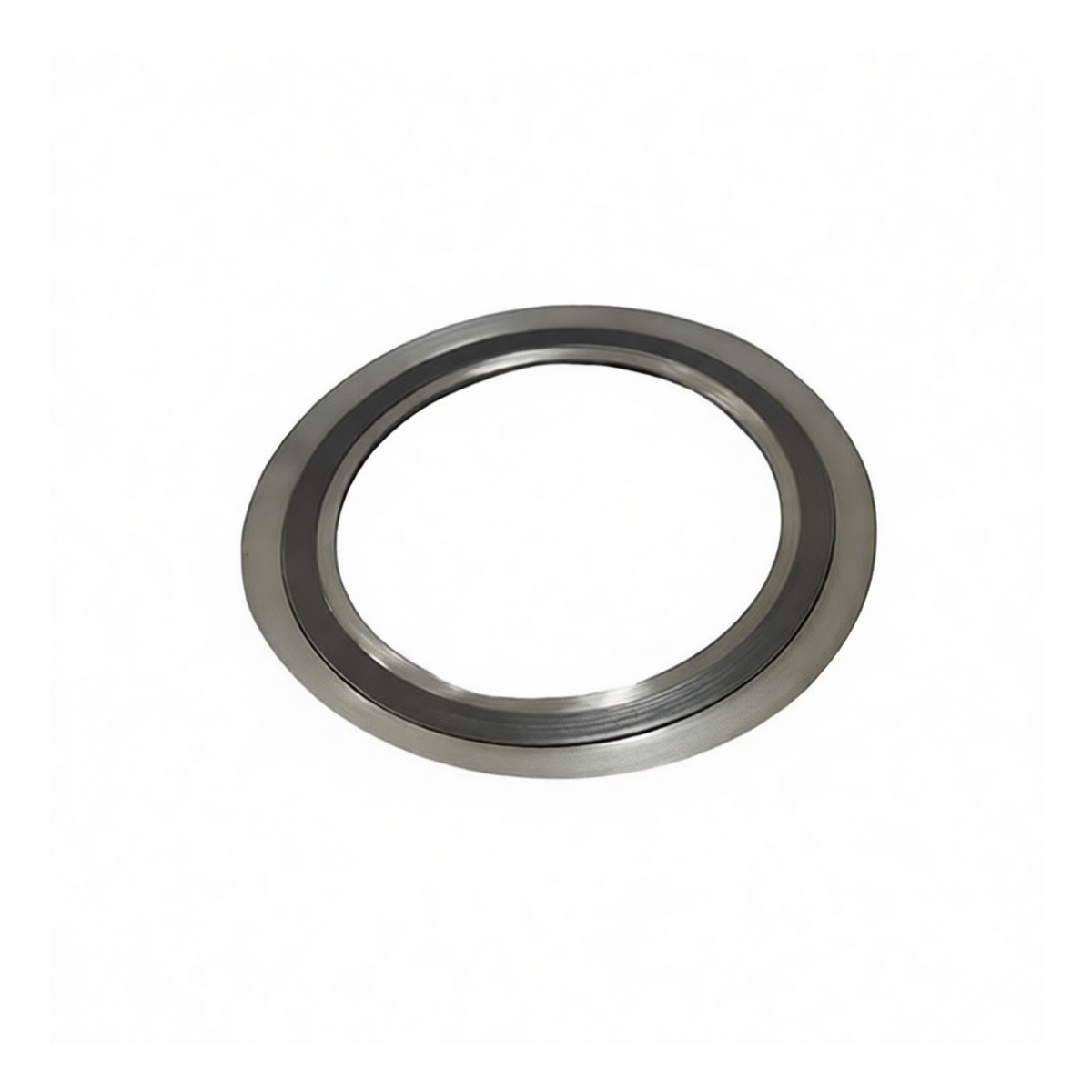

This 2.5-inch spiral wound gasket is engineered for creating a high-integrity seal in demanding industrial flanged connections. Designed specifically for Class 150 piping systems, it combines the strength of a metal winding with the sealing performance of a flexible filler. The gasket is constructed to handle thermal cycling, pressure fluctuations, and corrosive media, making it a reliable component for preventing leaks in critical process environments. Its standardized design ensures compatibility and easy installation across a wide range of industrial applications.
Key Features
Engineered with inner and outer 316L stainless steel centering rings for precise alignment and increased bolt loading resistance. Spiral wound construction with 316L stainless steel windings and a graphite filler for superior resilience and sealability. Provides excellent performance under thermal cycling and variable pressure conditions. Manufactured to conform to recognized industry dimensional and material standards. The 316L stainless steel material offers enhanced corrosion resistance in aggressive service environments.
Specifications
Material: 316L Stainless Steel (Inner/Outer Rings & Windings) with Graphite Filler Nominal Size: 2.5 inches Pressure Class: 150 LB Connection Type: Flanged Gasket Style: Spiral Wound with Inner and Outer Rings Pack Quantity: 10
Applications
General service and chemical processing piping systems
Petrochemical and refinery applications
Power generation and utility services Wherever corrosion-resistant sealing for Class 150 flanges is required
