Overview

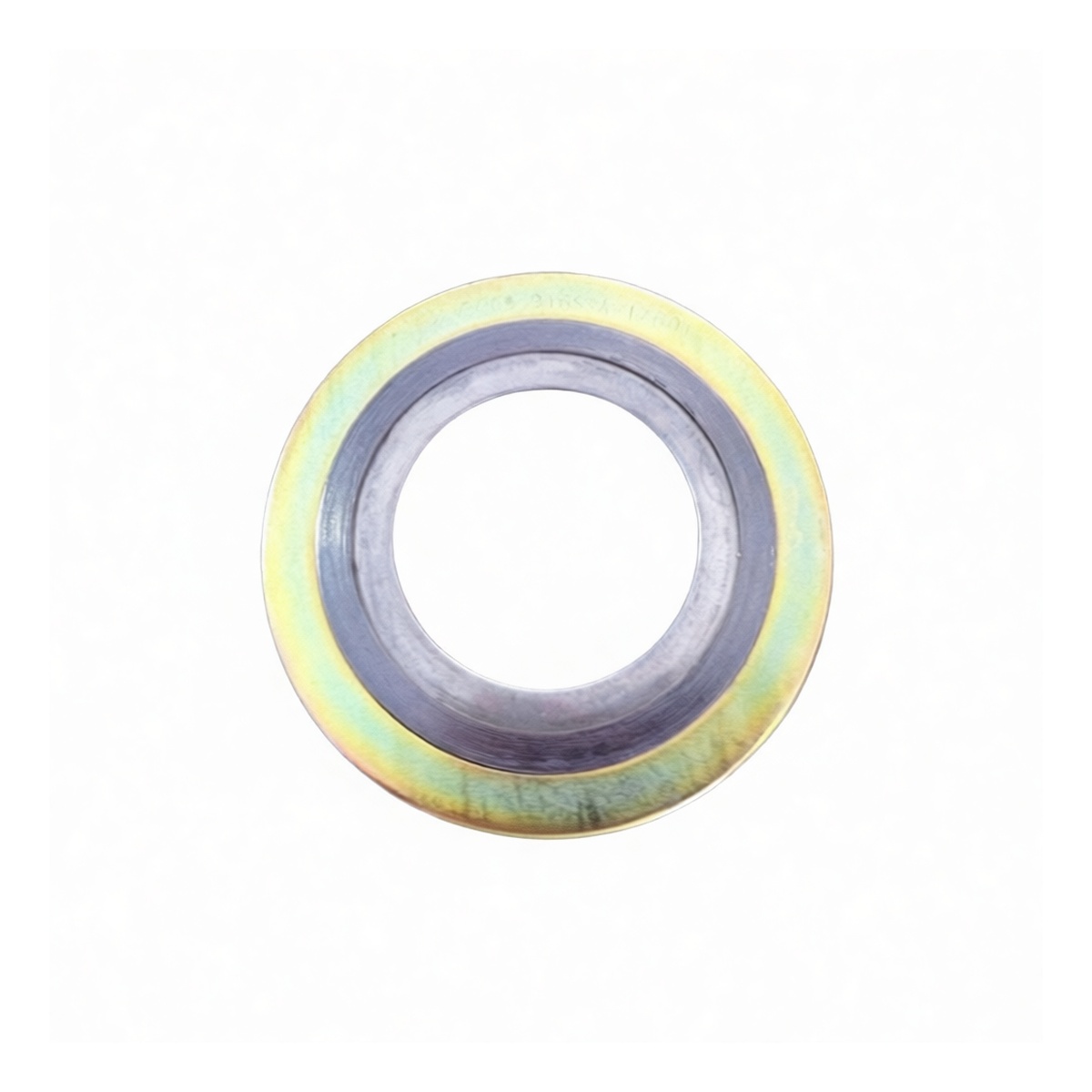

This spiral wound flange gasket is engineered for high-integrity sealing in demanding industrial piping systems. Designed for a nominal pipe size of DN32 (approximately 1.25 inches) and a pressure rating of PN16 (approximately 150 PSI), it provides a reliable, leak-tight seal in high-pressure and high-temperature applications. Its robust, multi-layer construction ensures long-term performance and resistance to compression set, making it a critical component for maintenance, repair, and new assembly operations.
Key Features
Spiral wound construction for superior resilience and sealing Carbon steel (CRS) outer ring for structural stability and handling 304 stainless steel inner ring for corrosion resistance at the bore
Compressible graphite filler for an effective seal across a wide temperature range
Conforms to recognized industry dimensional standards for guaranteed fit Package quantity of 50 for inventory management and job-site efficiency
Specifications
Material Construction: Carbon Steel Outer Ring, 304 Stainless Steel Inner Ring, Graphite Filler Nominal Size: DN32 (Approx. 1.25 Inch) Pressure Rating: PN16 (150 PSI) Design Standard: Engineered to Common Industry Specifications Connection Type: Flange Gasket Type: Spiral Wound with Inner and Outer Rings Package Quantity: 50
Applications
Sealing high-pressure process piping in chemical and petrochemical plants
Boiler feedwater and steam line connections in power generation
Hot oil and heat transfer fluid systems in manufacturing
Compressed air and gas lines in industrial facilities General service on pumps, valves, and vessels with standard DN32 flanges
