Overview

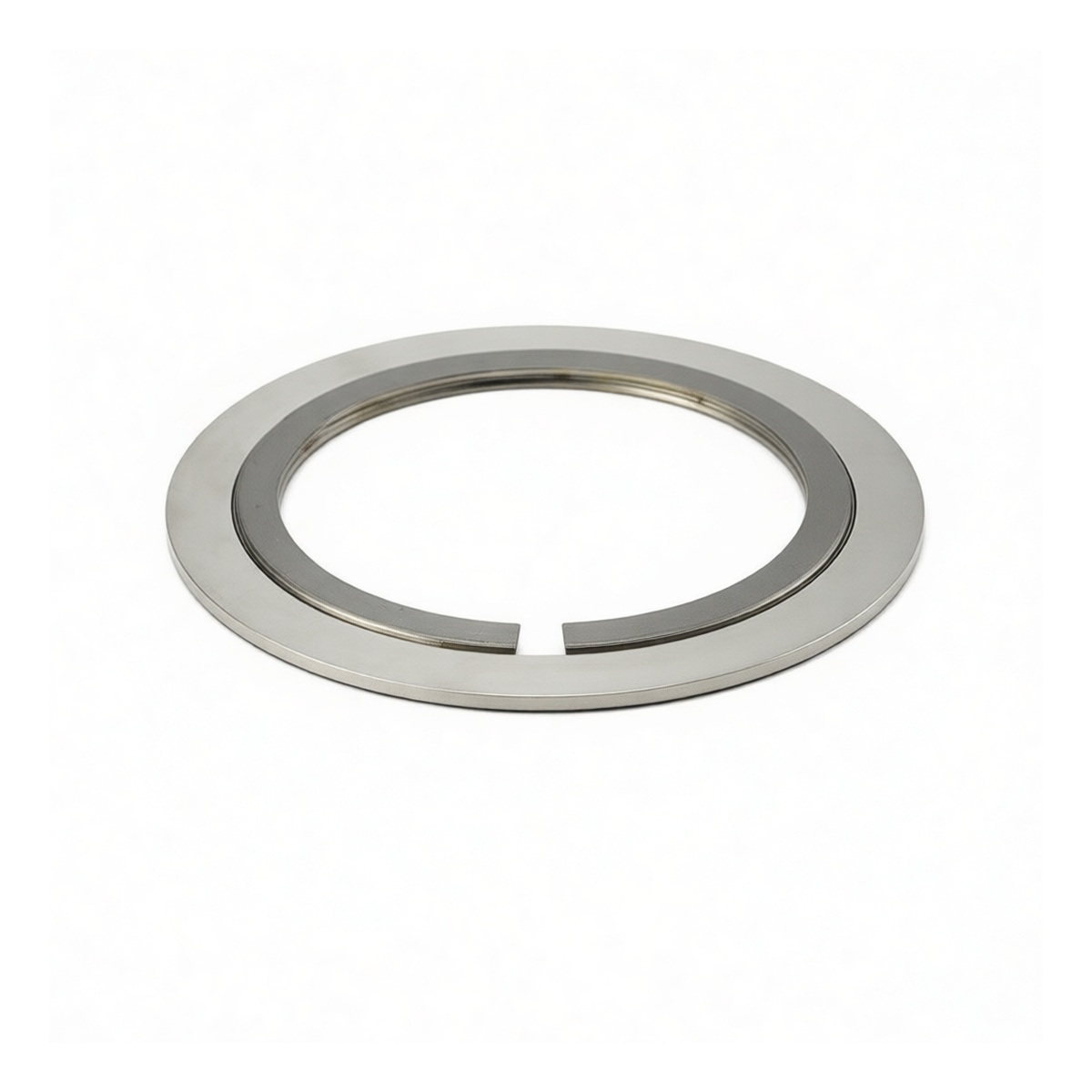

This C-shaped metal wound flange gasket is engineered to deliver a superior, high-integrity seal for high-pressure hose reel connections and industrial piping systems. It is constructed with a precision-wound stainless steel core and a resilient graphite filler, creating a robust seal capable of accommodating system pressure, temperature fluctuations, and flange face irregularities. Designed for a nominal pipe size of 0.59 inches, this gasket is manufactured to comply with recognized industry dimensional and material standards, ensuring reliable performance and interchangeability in critical sealing applications.
Key Features
C-shaped metal winding design for excellent resilience and sealing force
Stainless steel inner and outer ring construction for enhanced handling and flange protection High-purity graphite filler providing reliable sealing across a wide temperature range Engineered to withstand pressures up to 160 PSI for demanding service
Precision dimensions ensure a proper fit and prevent installation issues Individually packaged in sets of 36 for efficient inventory and job site use
Specifications
Material: Stainless Steel (304) core and rings with graphite filler Nominal Size: 0.59 inches Pressure Rating: PN 160 (Approximately 160 PSI) Design Standard: C2220 type per industry specification Construction: Metal wound, C-shaped profile with controlled density Package Quantity: 36 pieces
Applications
Sealing flange connections on industrial hose reels for air, water, and chemical transfer General service sealing in piping systems for petrochemical, power generation, and manufacturing plants Pump, valve, and heat exchanger connections requiring a pressure-resistant seal Maintenance and repair operations where a reliable, standards-compliant gasket is required
