Overview

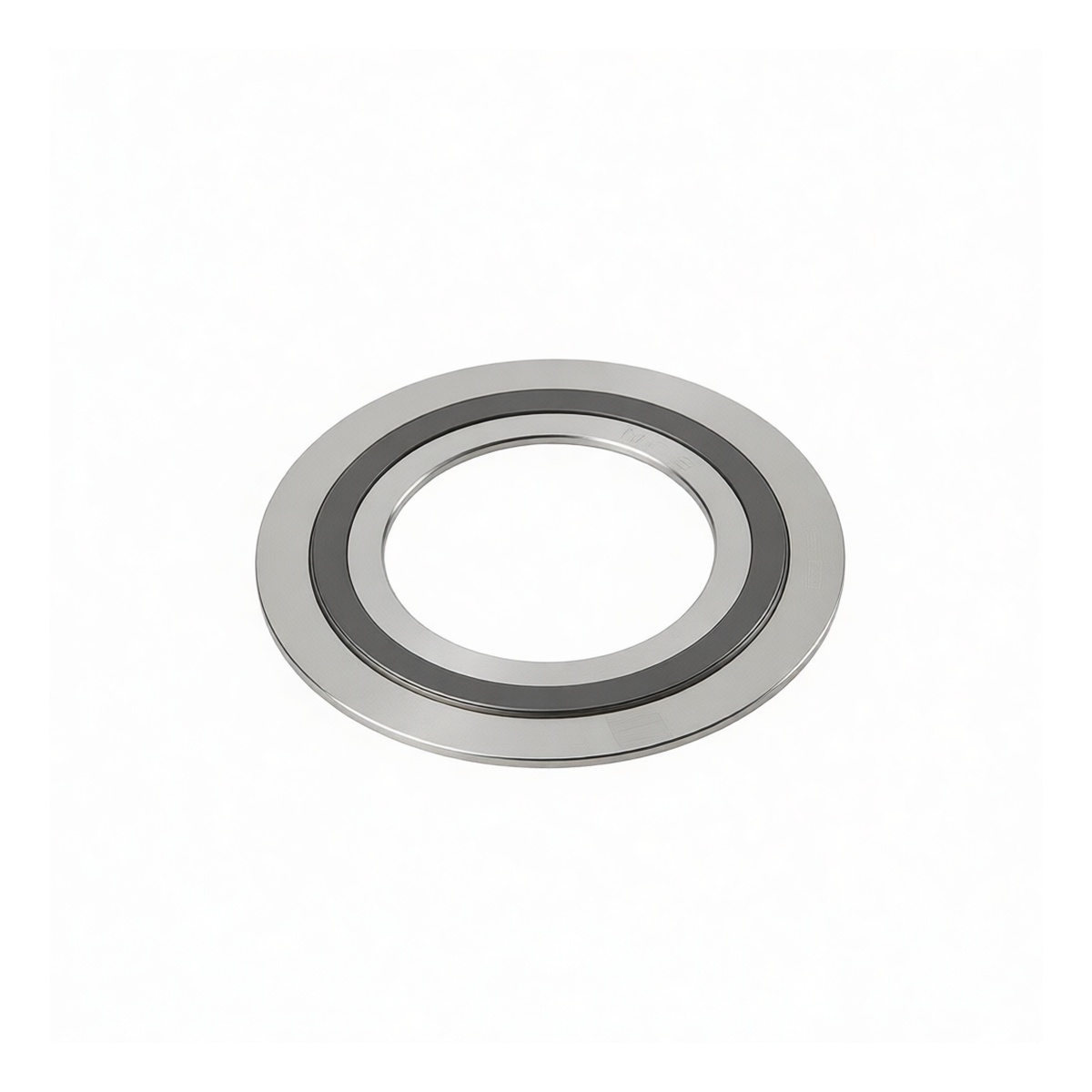

This flanged D-ring gasket is engineered for critical sealing in high-pressure and high-temperature industrial piping systems. It utilizes a robust metal-wound construction with a flexible graphite filler, creating a resilient seal capable of accommodating thermal expansion, vibration, and pressure fluctuations. The design is specifically tailored for use with flanged connections, providing a reliable barrier against leaks in demanding process environments such as chemical processing, power generation, and oil and gas operations.
Key Features
Constructed with 304 stainless steel inner and outer rings for corrosion resistance and structural integrity. Features a flexible graphite filler that provides excellent conformability and sealing performance. Engineered to withstand extreme pressure cycling up to 3000 PSI. Suitable for a wide service temperature range from -450°F to 1500°F. D-ring shape is optimized for flanged connections, ensuring proper fit and compression. Manufactured to consistent industry standards for dimensional reliability and interchangeability. Supplied in a practical package quantity for maintenance and installation efficiency.
Specifications
Material: 304 Stainless Steel (Inner/Outer Rings) with Graphite Filler Nominal Size: 0.59 inch Connection Type: Flanged D-Ring Standards: Meets Relevant Industry Specifications for Dimensional and Material Compliance Pressure Rating: Up to 3000 PSI Temperature Range: -450°F to 1500°F Package Quantity: 25
Applications
Sealing flanged connections in chemical and petrochemical processing plants. High-pressure steam lines and boiler feed systems in power generation. Piping systems for refined fuels, crude oil, and natural gas. General industrial process piping requiring a robust, temperature-resistant seal.
