Overview

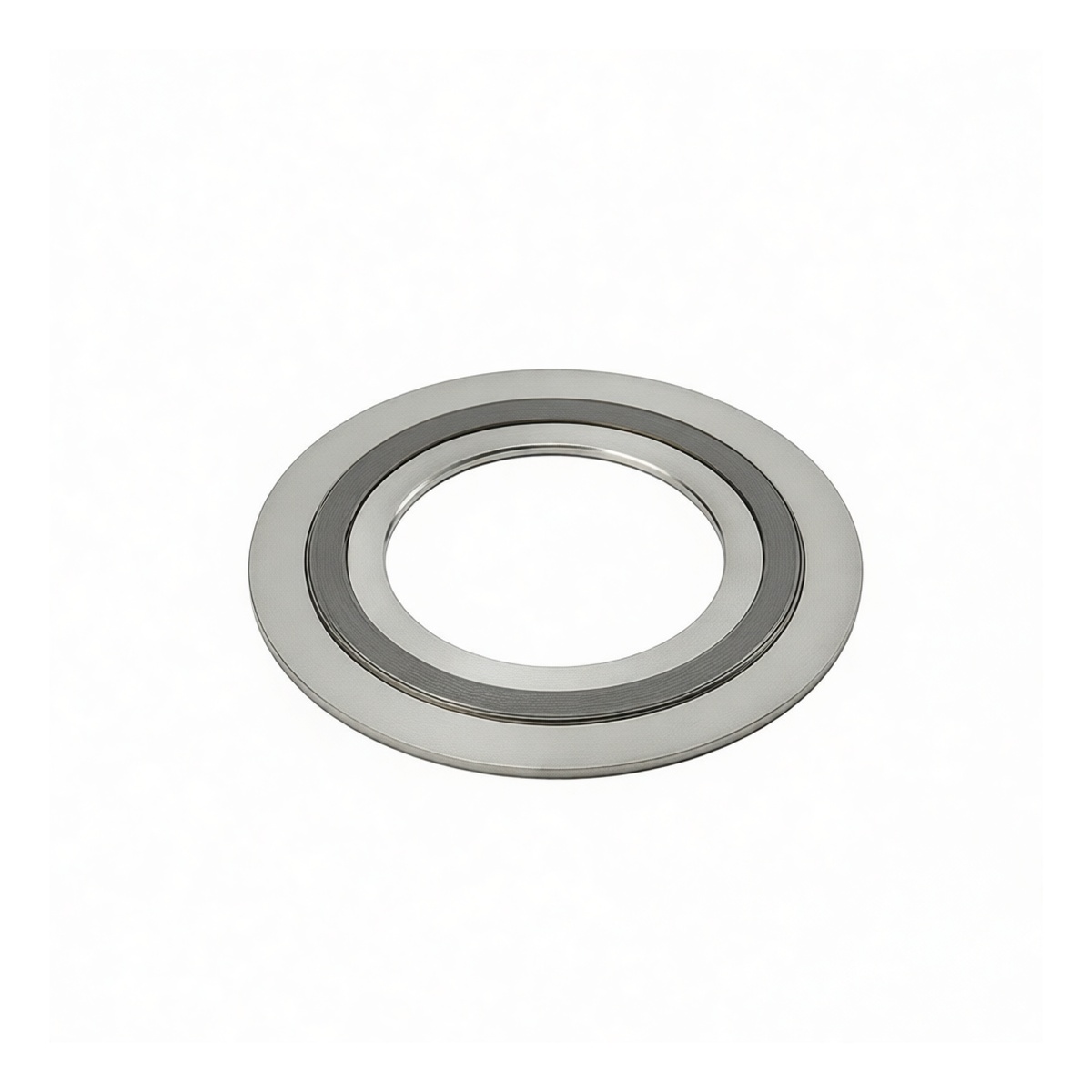

This D-ring metallic wound gasket is engineered for creating high-integrity, leak-tight seals in standard flanged piping connections. It is constructed with a resilient graphite filler wound between concentric layers of stainless steel, reinforced with solid inner and outer retaining rings. This design provides exceptional sealing force distribution and compensates for flange face irregularities, making it suitable for a wide range of demanding industrial services involving elevated pressures, temperatures, and aggressive media. The gasket conforms to recognized industry dimensional and material specifications, ensuring reliable interchangeability and performance in critical applications.
Key Features
Robust 304 stainless steel inner and outer retaining rings for structural stability and crush resistance. Flexible wound graphite filler provides superior conformability and thermal resilience. D-ring profile is specifically designed for use with standard raised face flanges. Engineered for service in high-temperature and high-pressure environments. Conforms to industry-standard dimensions for reliable fit and function. Bulk packaging supports maintenance programs and large-scale installation projects.
Specifications
Material (Inner/Outer Ring & Windings): 304 Stainless Steel Material (Filler): Flexible Graphite Nominal Pipe Size (NPS): 0.5 inch Gasket Inner Diameter: 0.59 inches Gasket Outer Diameter: 1.38 inches Pressure Rating (PN): 16 (Approximately 232 PSI) Design Standard: HG/T20610-2009 Gasket Type Code: D2222 Configuration: D-Ring with Inner and Outer Ring Package Quantity: 36 pieces
Applications
Sealing flanged connections in chemical and petrochemical processing pipelines. General service in refineries and power generation facilities. High-temperature fluid transfer systems in manufacturing. Heating, ventilation, and industrial plumbing applications. Maintenance, repair, and operations (MRO) for plant infrastructure.
