Overview

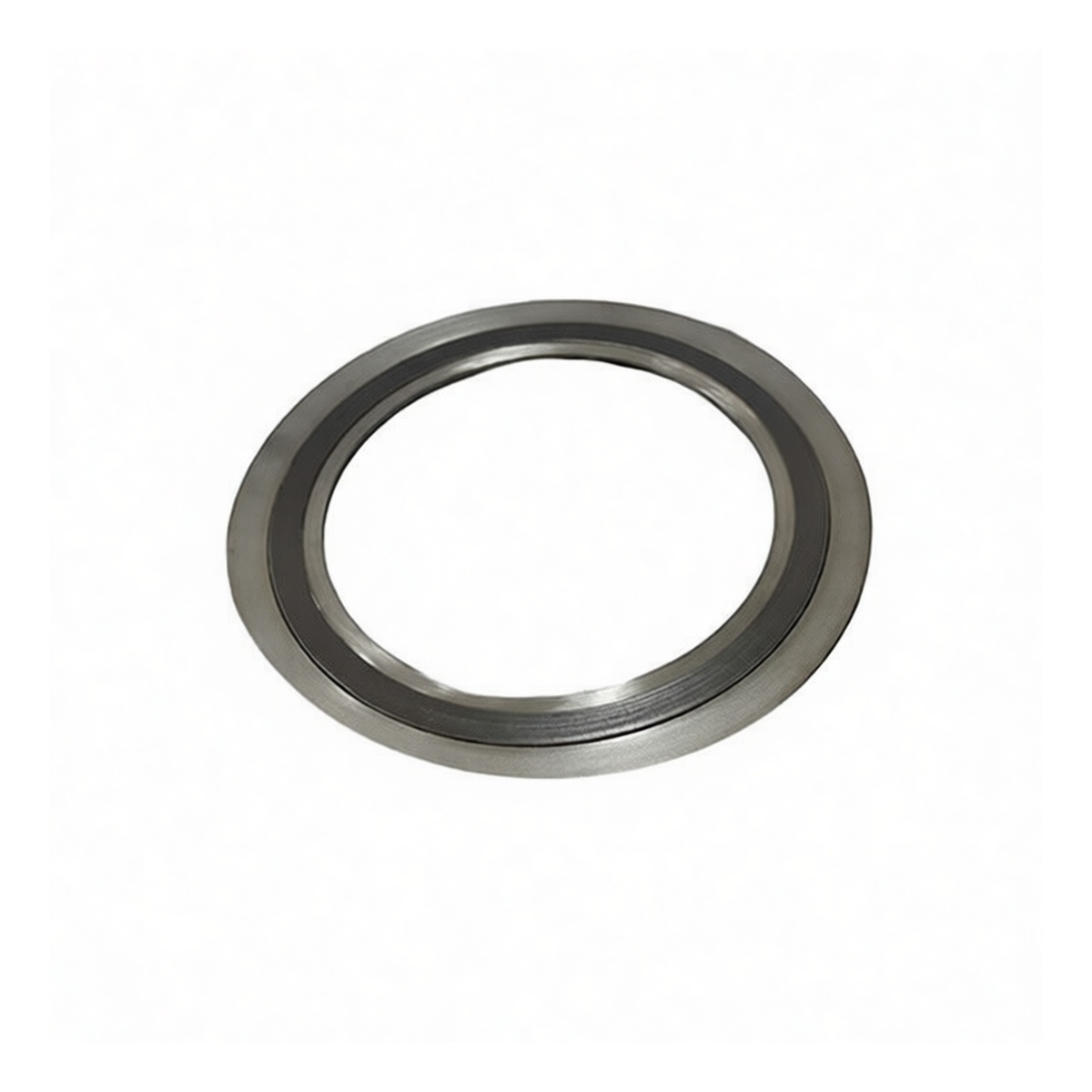

This 17.69-inch nominal diameter flanged spiral wound gasket is engineered for critical sealing in high-pressure, high-temperature industrial piping systems. It is designed to create a reliable, leak-tight seal between flanged connections, preventing fluid loss and ensuring system integrity. The gasket's construction combines the strength of metal with the compressibility of a soft filler, making it suitable for applications with variable pressures and thermal cycling. It is manufactured to precise industry standards for dimensional accuracy, ensuring a proper fit and optimal performance in demanding environments.
Key Features
Spiral wound design for superior resilience and sealing under variable conditions 304 stainless steel inner and outer rings for structural integrity and corrosion resistance
Graphite filler providing excellent thermal stability and chemical compatibility Engineered for high-pressure service up to 300 LB
Meets relevant industry standards for material and dimensional specifications
Robust construction for long service life and reduced maintenance downtime
Specifications
Material: Stainless Steel 304 Nominal Size: 17.69 inches Pressure Rating: 300 LB Standards: Meets Industry Standards Connection Type: Flanged Design: Spiral Wound with Inner and Outer Rings Filler Material: Graphite Pack Quantity: 1 unit
Applications
Sealing flanged connections in chemical and petrochemical processing pipelines High-pressure steam lines and power generation systems
Oil and gas transmission and refining operations
Industrial heating and cooling systems Any application requiring a dependable seal in ASME B16.5 flanged joints under demanding service conditions
