Overview

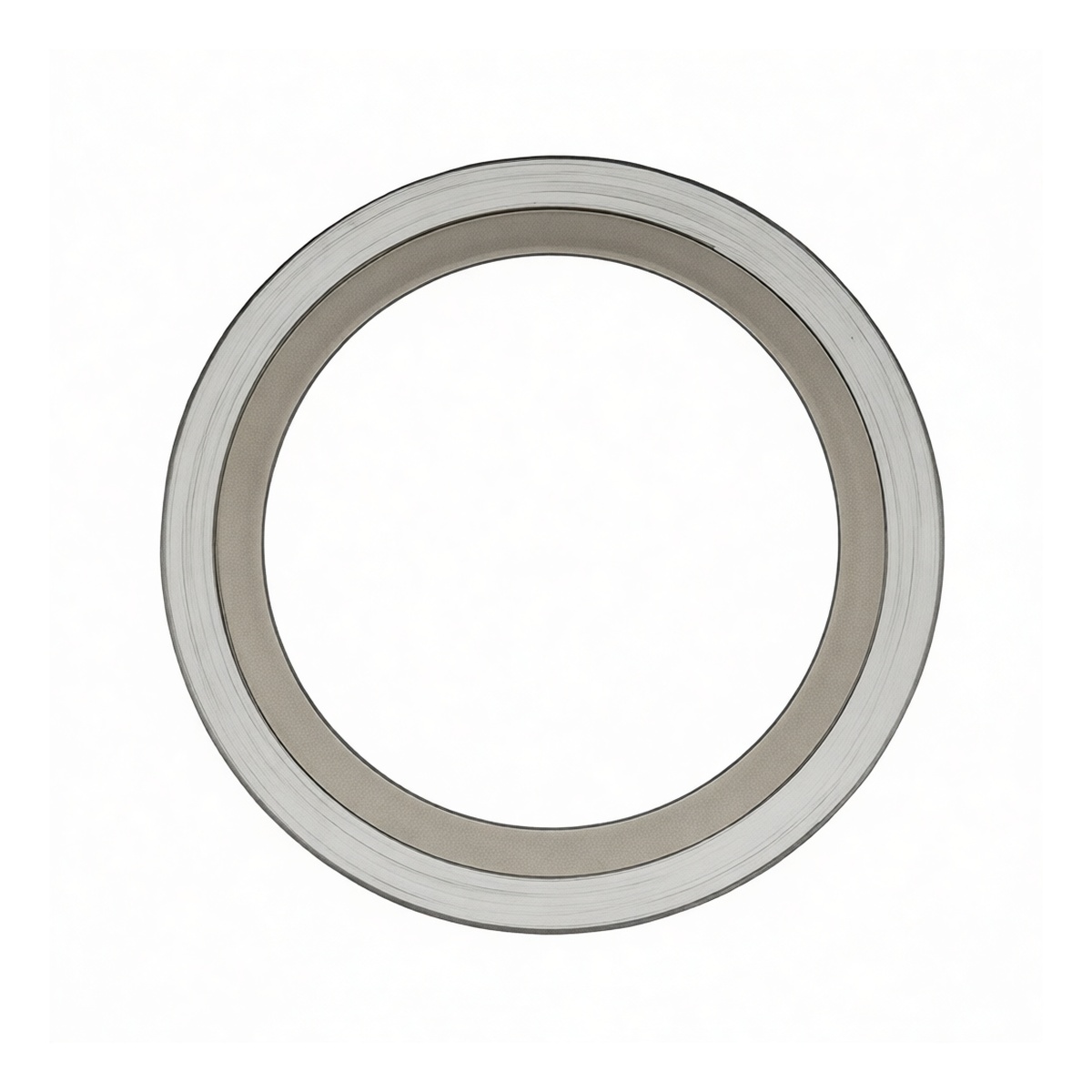

This 24.88-inch spiral wound gasket is a premium sealing solution engineered for critical, high-pressure flange connections in demanding industrial environments. It is manufactured to a recognized international standard for dimensional consistency and performance. The gasket's robust construction combines the strength of metal with the sealing properties of a non-metallic filler, creating a reliable seal capable of withstanding significant pressure, temperature fluctuations, and mechanical stress.
Key Features
Designed for high-pressure service up to approximately 914 PSI Constructed with a 304 stainless steel winding for strength and corrosion resistance Features a polytetrafluoroethylene (PTFE) filler for broad chemical compatibility Integral inner ring provides enhanced gasket stability and prevents blow-out
Spiral wound design allows for compression and recovery during thermal cycling
Suitable for a wide range of aggressive media and temperatures
Specifications
System of Measurement: Metric (converted to Imperial for reference) Material Grade/Class: 304
Material
Stainless Steel + PTFE Thread Size: Not Applicable Finish: Plain (Uncoated) Shaft/Bore Diameter: 24.88 inches Thickness: 0.177 inches Nominal Pressure Rating: 63 Bar (approximately 914 PSI) Construction Type: Spiral wound with inner ring Pack Quantity: 2
Applications
Sealing large-diameter flanges in chemical and petrochemical processing High-pressure piping systems in oil and gas production and refining Power generation facilities, including steam and utility lines
Industrial heating and cooling systems with thermal cycling General industrial plumbing and fluid handling where a resilient seal is required
