Overview

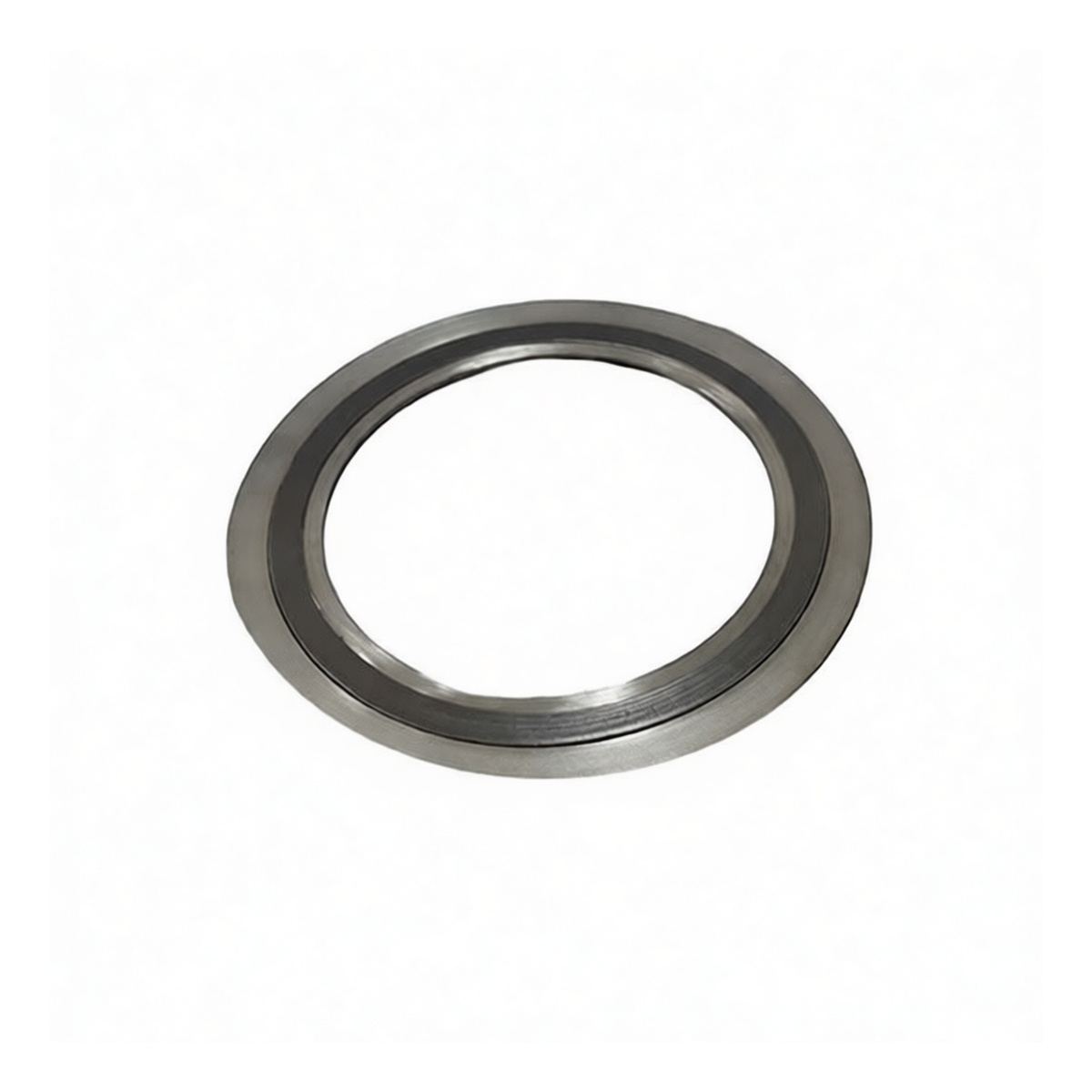

The D-Ring Gasket is a precision-engineered, metal-wound sealing solution designed for demanding high-pressure and high-temperature flange connections in industrial piping systems. It conforms to the stringent HG/T20610-2009 standard, ensuring dimensional consistency and performance reliability for critical applications. Its construction combines the strength of metal with the sealing resilience of graphite, creating a robust seal that maintains integrity under thermal cycling and variable load conditions.
Key Features
Engineered to PN63 pressure class rating for severe service D-type design incorporates integral inner and outer retaining rings Metal winding and filler are constructed entirely from 304 stainless steel and flexible graphite
The inner ring prevents filler extrusion into the pipe bore under high pressure
The outer ring provides radial stability and protects the winding during handling and installation
Flexible graphite filler offers superior conformability to flange face imperfections Excellent resistance to corrosion, thermal shock, and creep relaxation
Specifications
System of Measurement: Metric Material Grade/Class: 304 Stainless Steel
Material
Stainless Steel and Graphite Thread Size: Not Applicable Finish: Mill Finish Shaft/Bore Diameter: 2.40 inches Thickness: 0.18 inches Nominal Size: DN50 Pressure Class: PN63 Construction Type: D-Ring (With Inner and Outer Ring) Winding Material: 304 Stainless Steel Filler Material: Flexible Graphite Ring Material: 304 Stainless Steel
Applications
High-pressure process piping in chemical and petrochemical plants Heat exchangers, boilers, and steam system flanges
Refinery and offshore oil and gas pipeline connections
Power generation and utility service flanges Any application requiring a resilient, high-performance seal for raised face flanges under extreme conditions
This product is packaged in quantities of 25 units.
