Overview

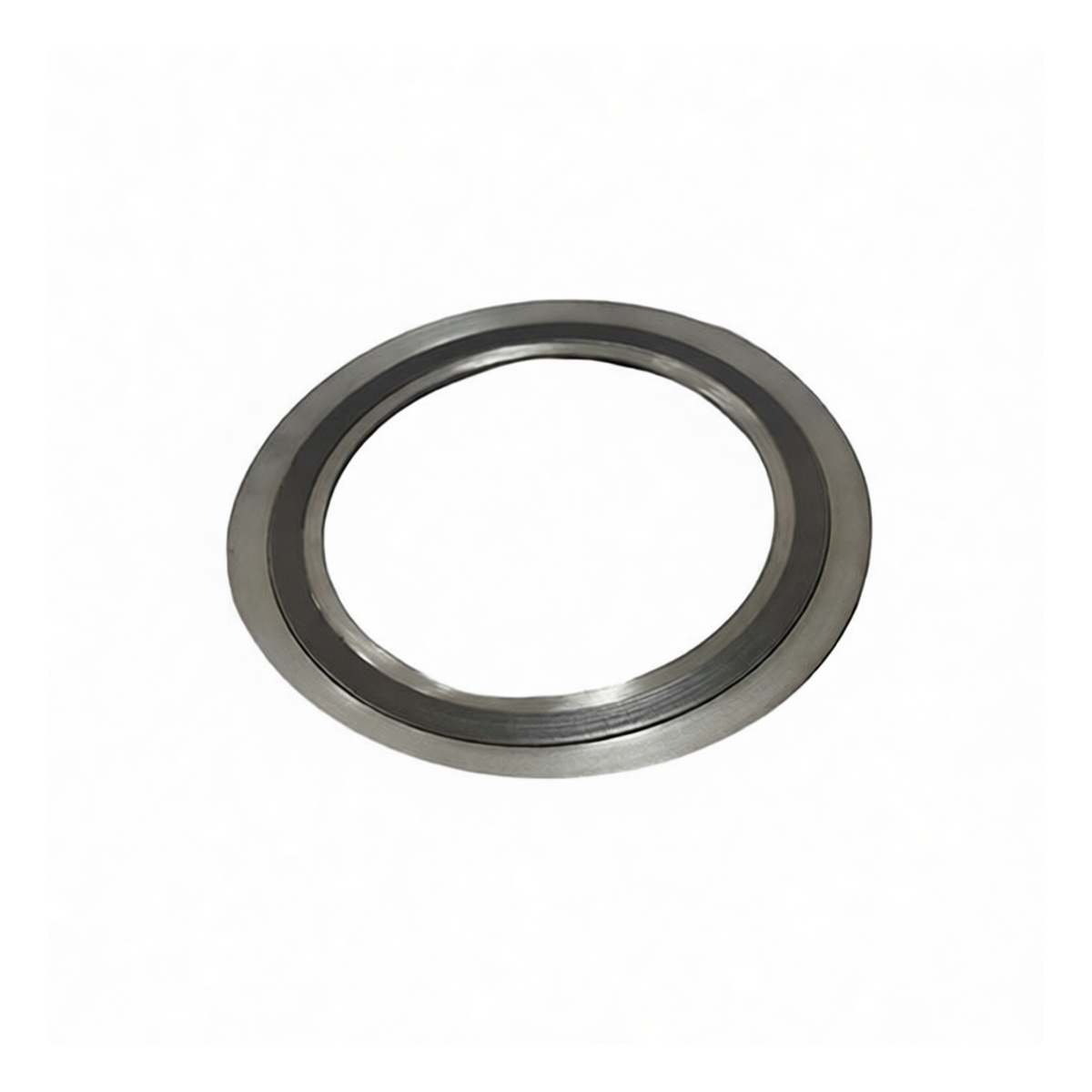

The 304 Stainless Steel D-Ring Spiral Wound Gasket is a precision-engineered sealing solution designed for high-pressure, high-temperature flange connections in industrial piping systems. Its robust construction provides a reliable metal-to-metal seal, preventing leakage of aggressive fluids, steam, and gases in demanding process environments. This gasket is manufactured to the international GB/T4622.2-2003 standard, ensuring dimensional accuracy and compatibility with standard flange faces.
Key Features
Engineered for high-pressure service up to approximately 914 PSI. Constructed with a resilient spiral wound design for superior sealing performance. D-Ring (outer metal ring) construction provides radial stability and prevents over-compression. Flexible graphite filler offers excellent thermal conductivity and chemical resistance. 304 stainless steel windings provide strength, corrosion resistance, and spring-like recovery. Designed for dimensional interchangeability with standard flange specifications.
Specifications
Material Grade/Class: 304 Stainless Steel Material Composition: 304 Stainless Steel and Flexible Graphite System of Measurement: Metric (with Imperial equivalents provided) Shaft/Bore Diameter: 0.83 inches Thickness: 0.18 inches Finish: None (standard mill finish) Thread Size: Not Applicable
Applications
Sealing high-pressure steam lines and boiler feed systems. Connections in chemical and petrochemical processing pipelines. Refinery and hydrocarbon processing equipment. Power generation and thermal plant piping. General industrial service for water, oil, and gas applications.
This gasket is supplied in a convenient package quantity of 100 units, providing an efficient inventory solution for maintenance teams and project installations requiring multiple, identical seals. Its ready-to-use design eliminates fabrication time and ensures consistent, reliable sealing performance across all connections.
