Overview

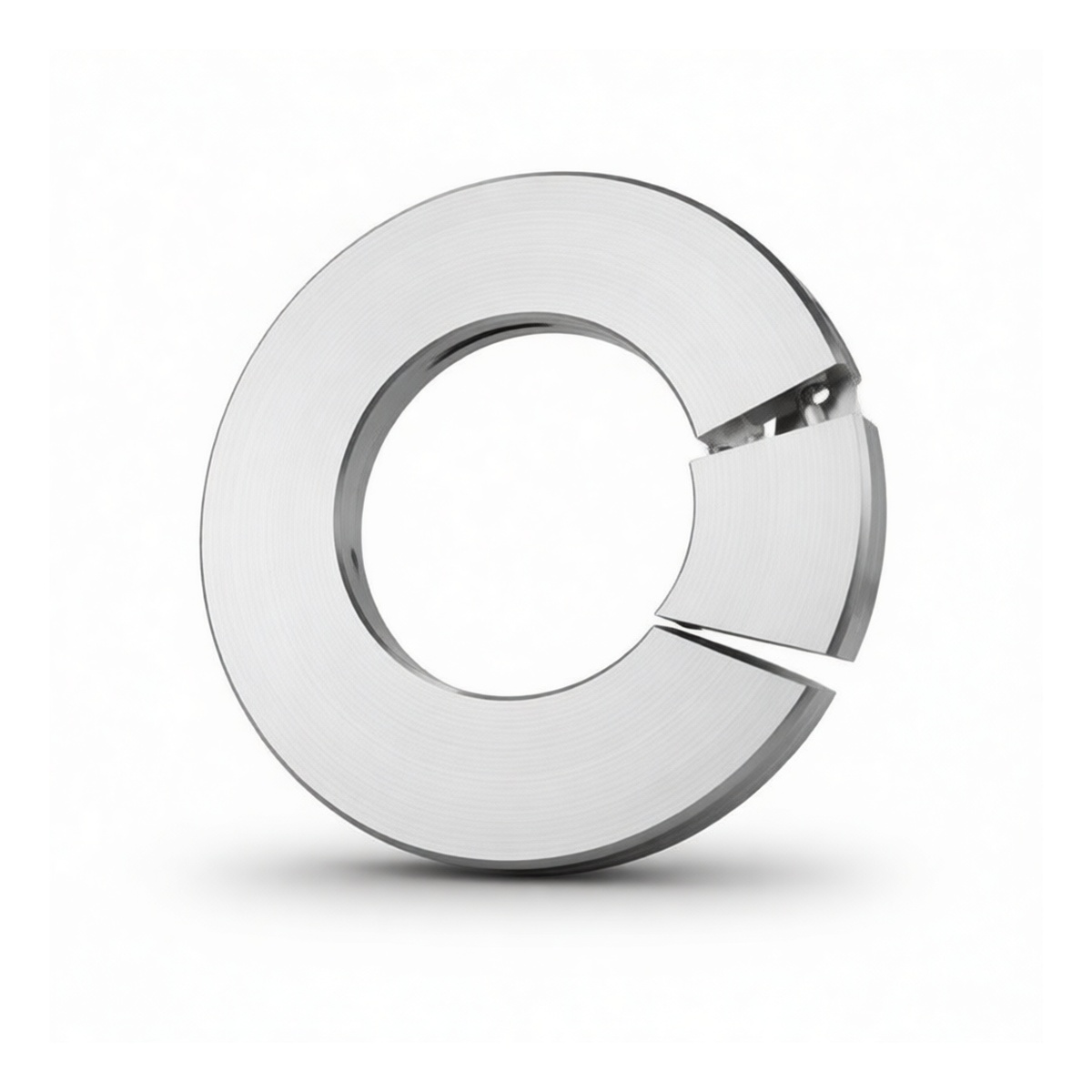

This 304 stainless steel retaining washer is engineered for demanding sealing applications in industrial piping and fluid systems. It functions as a critical component in creating leak-proof seals between flanged connections, particularly where thermal cycling, vibration, and high pressure are present. The metal wound, spiral design provides exceptional resilience and sealing force, conforming to mating surfaces to prevent fluid or gas escape. Manufactured to meet industry standard 20610-2009, this washer offers reliable performance in corrosive and high-temperature environments.
Key Features
Constructed from corrosion-resistant 304 stainless steel for long service life Metal wound spiral design ensures a resilient, self-compensating seal Suitable for systems with a pressure rating of approximately 230 PSI
Engineered to accommodate thermal expansion and vibration in piping systems
Provides a reliable seal in flanged connections with raised faces
Package quantity supports efficient inventory management and project needs
Specifications
Material: 304 Stainless Steel Shaft/Bore Diameter: 1.06 inches Thickness: 0.18 inches System of Measurement: Metric (converted dimensions provided) Material Grade/Class: 304 Thread Size: Not Applicable Finish: Standard Mill Finish Industry Standard: 20610-2009 Package Quantity: 12 washers
Applications
Sealing flanged connections in chemical processing pipelines High-pressure steam lines and boiler feed systems
Heat exchangers and condenser units
Oil and gas transmission and refining equipment General industrial plumbing and hydraulic systems requiring a robust, corrosion-resistant seal
