Overview

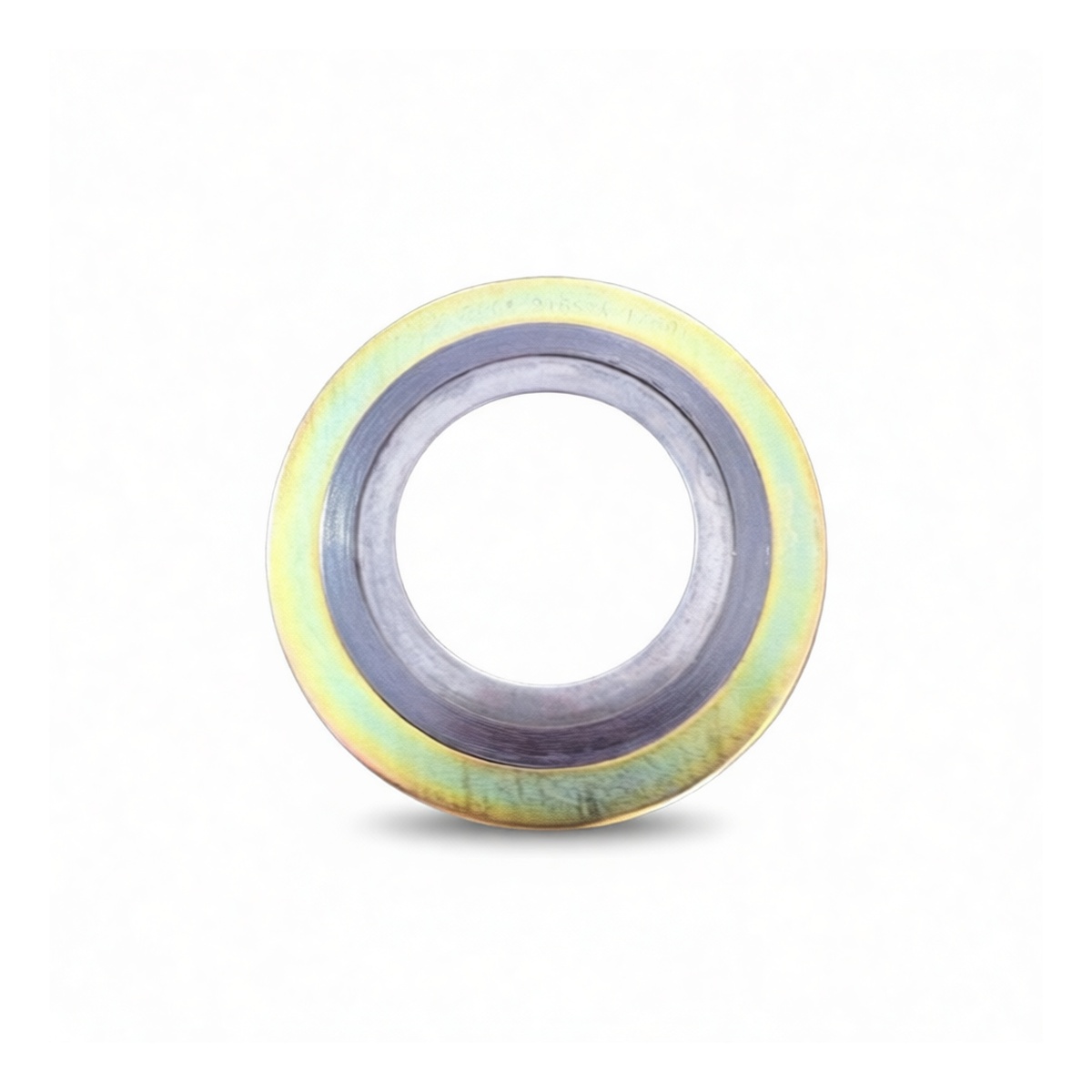

This spiral wound gasket is engineered for high-pressure sealing in flange connections within demanding industrial piping systems. It is constructed to the international GB/T4622.2-2003 standard, ensuring dimensional consistency and performance reliability. The gasket is designed for a nominal pressure rating of PN16, making it suitable for a wide range of process applications involving elevated temperatures and pressures. Its robust construction provides a dependable seal that compensates for minor flange irregularities and thermal cycling.
Key Features
V-shaped spiral winding of 304 stainless steel for mechanical strength and resilience
Flexible graphite filler material offering excellent thermal conductivity and chemical resistance
Integrated carbon steel inner and outer retaining rings for enhanced installation stability Retaining rings prevent over-compression and assist in proper bolt load distribution
Wound construction allows for superior sealing under variable load conditions Suitable for high-temperature service due to the properties of graphite and stainless steel
Specifications
Material Construction: Carbon Steel Retainer Rings, 304 Stainless Steel Windings, Graphite Filler, 304 Stainless Steel Outer Wrap Standard: GB/T4622.2-2003 Nominal Bore Diameter: 1.89 inches Overall Thickness: 0.177 inches Pressure Class: PN16 Finish: Standard mill finish System of Measurement: Metric standard (dimensions provided in Imperial units) Package Quantity: 36 pieces
Applications
Sealing flanged joints in chemical and petrochemical processing pipelines High-temperature and high-pressure steam service
Refinery and power generation utility systems Heat exchanger, valve, and pump connections General industrial service for fluids, gases, and steam where a resilient seal is required
