Overview

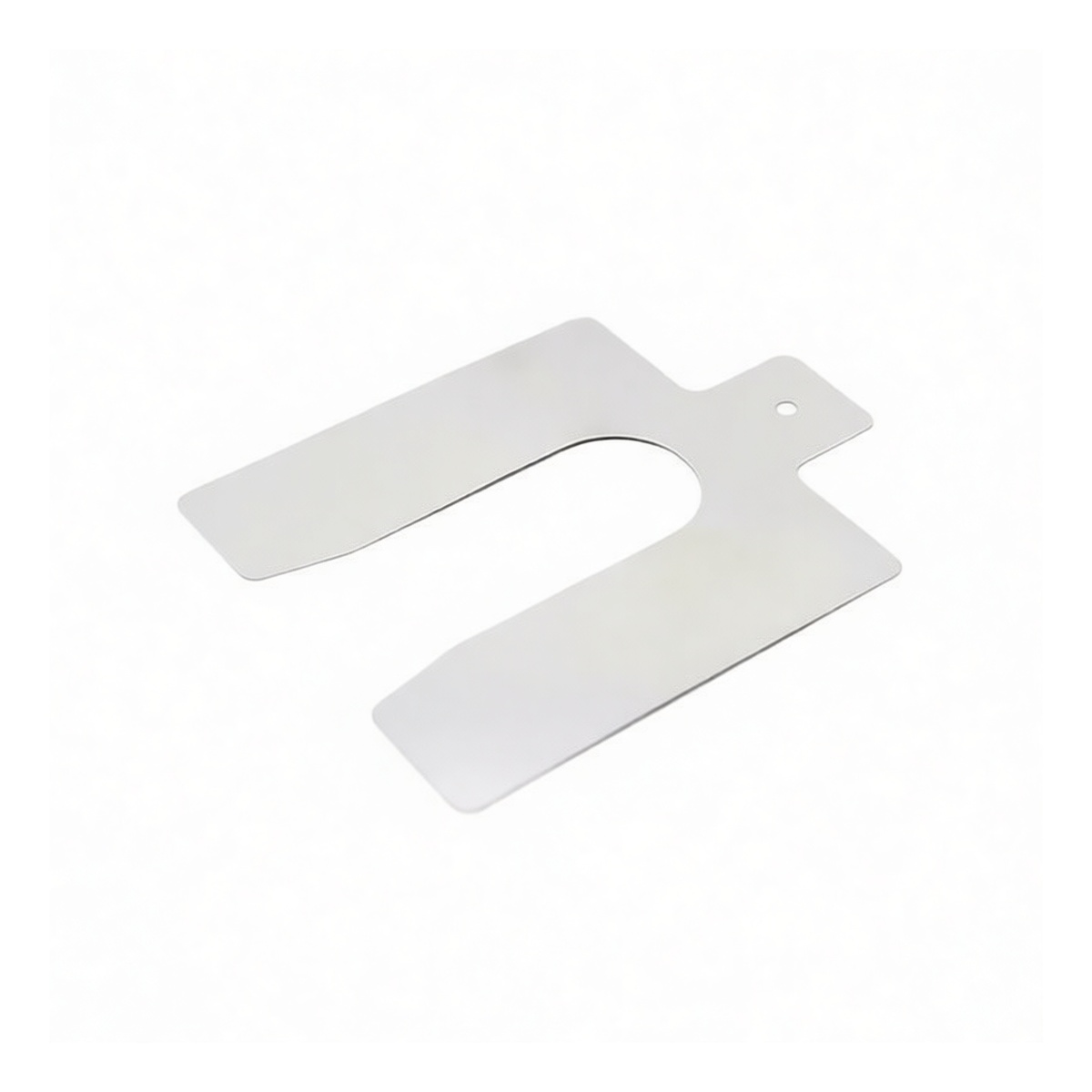

The F-Type U-Shim is a precision-engineered adjustment and alignment component designed for industrial machinery, structural fabrication, and maintenance applications. Manufactured from high-quality 304 stainless steel, this shim provides exceptional corrosion resistance and mechanical strength, ensuring reliable performance in harsh or demanding environments. Its unique U-shaped design allows for easy lateral installation and removal without complete disassembly of components, saving valuable time during setup, calibration, and field service.
Key Features
Constructed from durable, corrosion-resistant 304 stainless steel U-shaped design permits side-loading installation for efficient adjustments Precision laser-cut to consistent dimensional tolerances
Permanent laser etching provides clear part identification and traceability Standard F-Type configuration with a common opening size for broad compatibility
Supplied in a convenient bulk package to support project continuity
Specifications
Material: 304 Stainless Steel System of Measurement: Metric (Imperial dimensions provided) Overall Dimensions: 8.00 inches x 8.00 inches Material Thickness: 0.0118 inches Standard Opening Width: 2.17 inches Finish: Mill Finish, No Coating Thread Size: Not Applicable Shaft/Bore Diameter: Not Applicable Package Quantity: 25 pieces
Applications
Machinery alignment and leveling in manufacturing plants
Precision gap adjustment in structural steelwork and framing
Bearing and bushing preload setting in rotating equipment Compensation for wear or tolerance stack-up in assembly operations General shimming and spacing in maintenance, repair, and operations (MRO)
