Overview

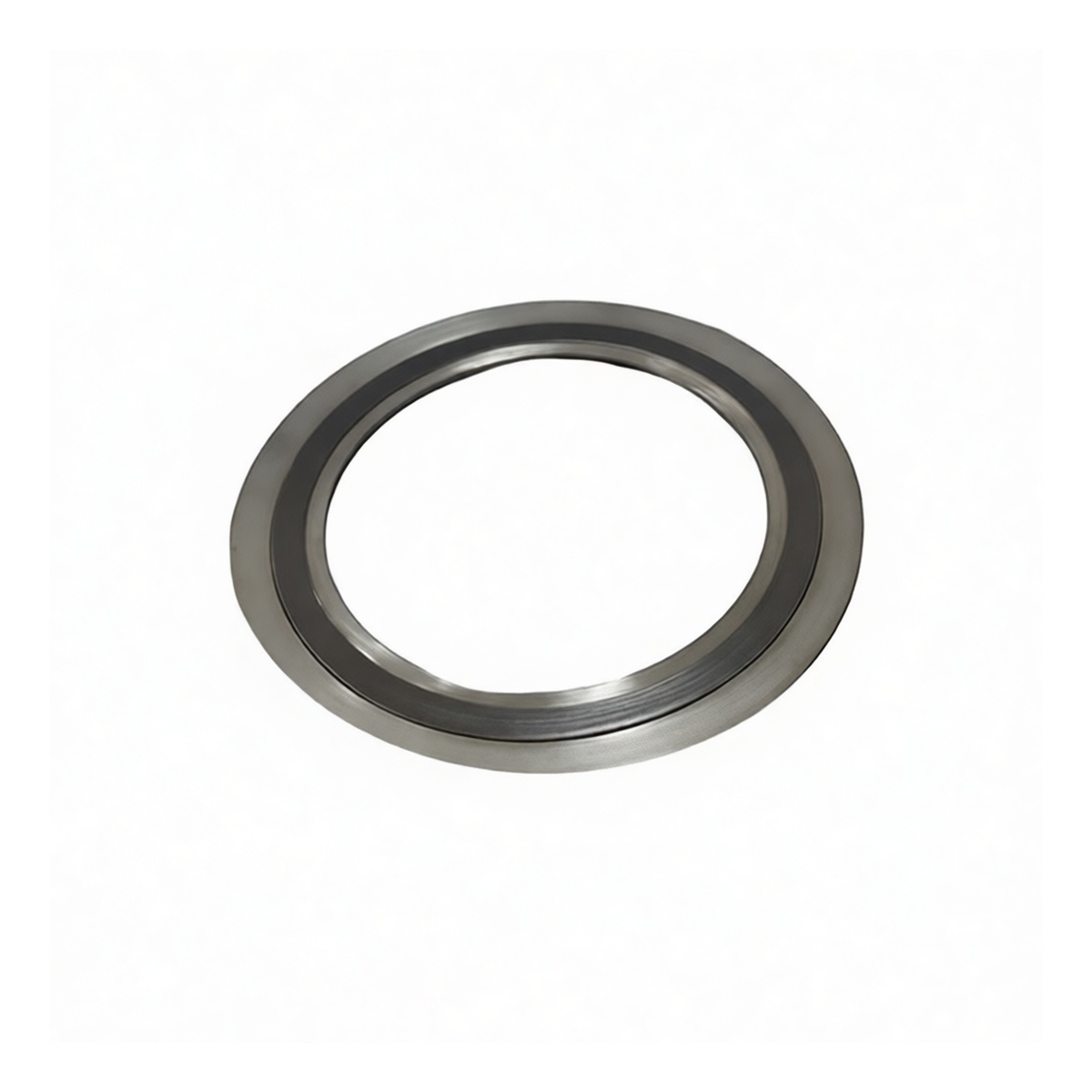

This spiral wound gasket is engineered for high-pressure sealing in critical industrial piping and vessel systems. It is constructed to provide a reliable, leak-tight seal in applications involving elevated temperatures, high pressures, and aggressive media. The design incorporates both inner and outer retaining rings, which center the gasket for simplified installation and prevent the wound filler from buckling under extreme compression. It is manufactured to conform with recognized international standards for dimensional consistency and performance.
Key Features
Engineered for high-pressure service up to approximately 914 PSI Construction features a resilient graphite filler wound with 304 stainless steel
Inner and outer carbon steel retaining rings for stability and ease of alignment
Suitable for a wide range of thermal and chemical service conditions
Provides a reliable seal in flanged connections subject to temperature cycling and vibration
Specifications
Material: 304 Stainless Steel Filler Material: Flexible Graphite Retaining Rings: Carbon Steel System of Measurement: Metric (Imperial dimensions provided) Shaft/Bore Diameter: 16.61 inches Thickness: 0.177 inches Finish: None Thread Size: Not Applicable
Applications
High-pressure process piping in chemical and petrochemical plants Heat exchangers, boilers, and pressure vessels
Power generation and utility systems
Refinery and hydrocarbon processing equipment General industrial sealing for ANSI/ASME flanges
