Overview

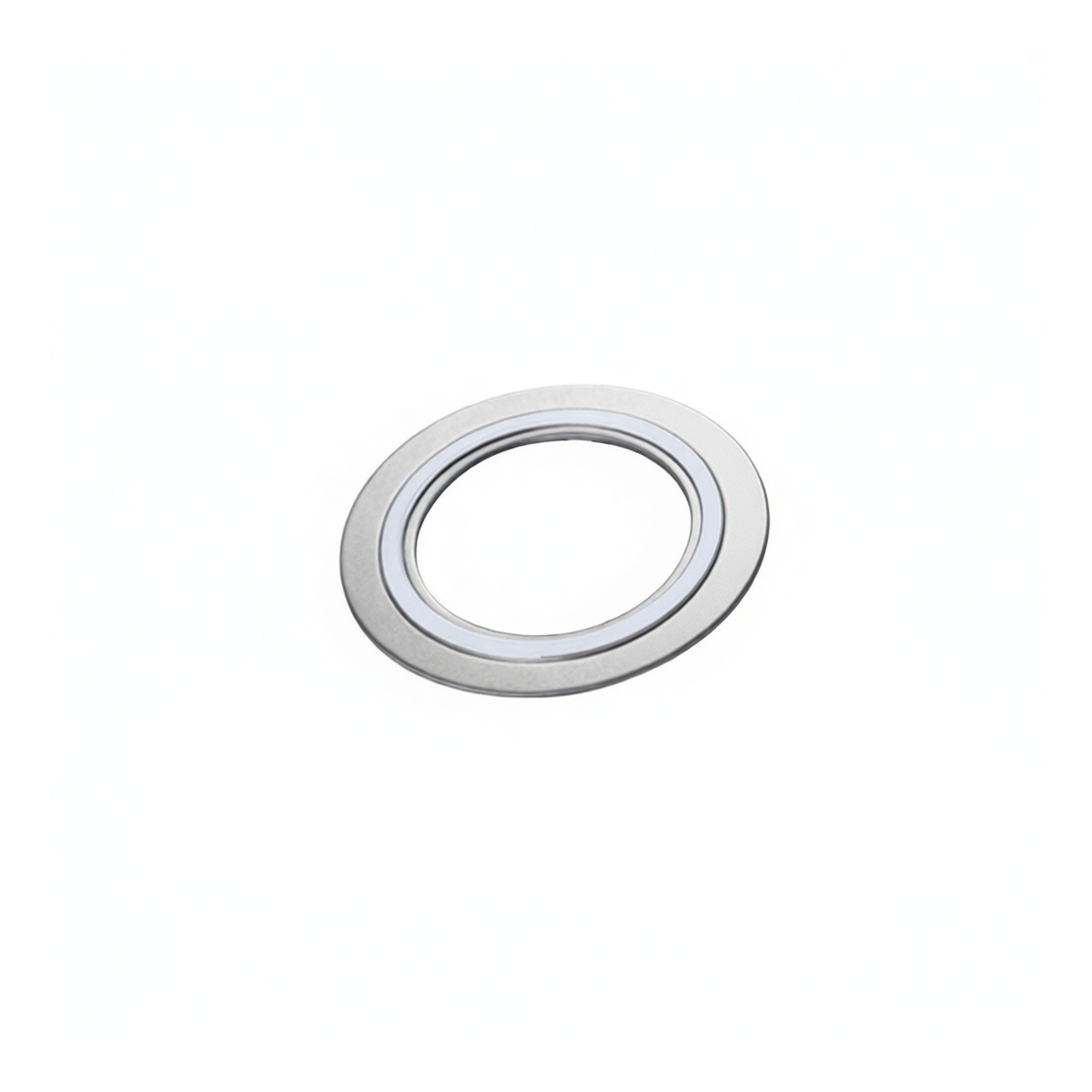

This spiral wound gasket is engineered for high-pressure, high-integrity sealing in critical flange connections. It is constructed with alternating layers of 316L stainless steel windings and a PTFE (polytetrafluoroethylene) filler, creating a resilient seal that conforms to flange face imperfections. The design incorporates integral inner and outer retaining rings, which provide structural stability to prevent gasket blow-out or buckling under extreme compression and pressure cycling. It is suitable for systems operating at pressures up to approximately 363 PSI.
Key Features
Robust construction with 316L stainless steel windings for strength and corrosion resistance
PTFE filler layer provides superior chemical resistance to a wide range of aggressive media
Integral inner and outer retaining rings for enhanced stability and installation control
Engineered to seal effectively on standard raised face flanges Designed for high-pressure applications and temperature cycling environments
Specifications
Material: 316L Stainless Steel and PTFE Bore Diameter: 1.30 inches Thickness: 0.177 inches Pressure Rating: Up to approximately 363 PSI Retaining Rings: Inner and Outer Rings Included System of Measurement: Metric (product conforms to metric dimensional standards) Finish: None (standard mill finish) Thread Size: Not Applicable
Applications
Sealing chemical processing and petrochemical flanges High-pressure pipeline connections in oil and gas systems
Boiler feedwater and steam system connections
Heat exchanger and reactor flanges in manufacturing
General industrial sealing for corrosive fluid handling
This gasket is supplied as a single unit. Package quantity is 25 pieces.
